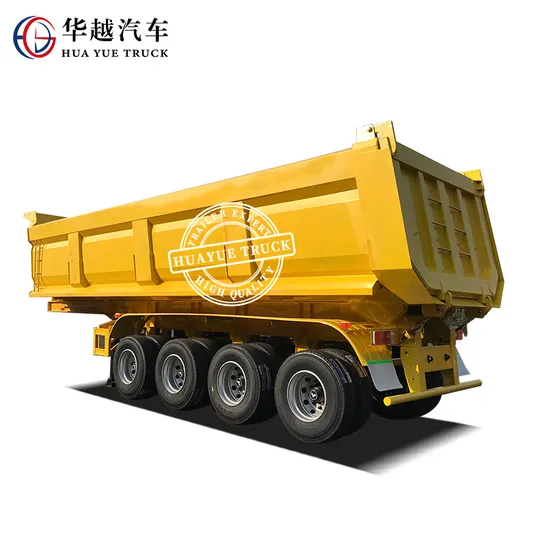

Hot Sale 4 Axle Dump Tipper Heavy Duty Truck Trailer U-Shape Dumper Tipping 80tons Ironstone Sand Coal Transport Dump Trailer

Product Description

Hot Sale 4 Axle Dump Tipper Heavy Duty Truck Trailer U-Shape Dumper Tipping 80Tons Ironstone Sand Coal Transport Dump Trailer ntroducing our Hot Sale 4 Axle Dump Tipper Heavy Duty Truck Trailer, designed for efficient transportation of heavy loads such as ironstone, sand, and coal. This U-Shape Dumper Trailer has a tipping capacity of 80 tons, making it ideal for heavy-duty applications. The 4 axles provide stability and durability, ensuring a smooth and safe transport experience. With a U-shaped design, this trailer allows for easy dumping of materials, increasing productivity on the job site. Whether you are in the construction, mining, or transportation industry, this trailer is a reliable solution for your hauling needs. Invest in our high-quality Dump Trailer for efficient and cost-effective transportation of materials.

The 4 Axle Dump Tipper Heavy Duty Truck Trailer is designed for heavy-duty transport, capable of carrying up to 80 tons of ironstone, sand, or coal with ease. Its U-Shape Dumper Tipping feature allows for quick and efficient unloading, making it ideal for construction, mining, and transportation industries. This hot sale trailer is built to last, with durable materials and a sturdy construction that ensures long-term reliability. Whether you need to transport heavy loads of coal or sand, this 4 Axle 80 tons dump trailer is the perfect solution for your hauling needs.
Product Parameters

DIMENSIONS
Tare Weight	13,000kgs
Payload	70,000kgs
Overall Length	10,500mm
Overall Width	2500mm
Dump body size	9400x2300x1600mm
Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume		34.6 m3
Side Wall		6mm thickness, T700 high tensile strength steel material
Front Wall and floor		8mm thickness, T700 high tensile strength steel material
Bottom		8mm thickness, T700 high tensile strength steel material
Loading condition		Sand or earth, Stone, Mining area
SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 8mm ; Bottom Flange 16mm,width 140mm;
Axle	4 axles
	FENGBAO 13T with front axle liftable with Air bag
Hydraulic System	One set of Chinese TOP 1 brand JIANGHENG, front tipping cylinder
Suspension	3 sets Mechanical suspension, one set air suspension on front axle.
Leaf Spring	10-piece leaf spring 16*9mm thickness
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.00R22.5 wheel rim, 17 pieces
Tyre	12R22.5-18PR tubeless tire with one spare tire, 17 pieces Linglong brand;
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box Side ladder

Detailed Photos
Company Profile The national high-tech enterprise, ZAOYANG HUAYUE SPECIAL PURPOSE VEHICLE CO., LTD., has invested 350 million RMB to build the Huayue Automotive Industrial Park. Covering 100 acres, this initiative leads innovation in automotive industry integration.

Huayue, is the leading distributor for 'FAW' , China TOP 1 Heavy Duty Commercial Truck brand in terms of sales. Our company has successfully partnered with China FAW, establishing direct sales centers in Wuhan, Xiangyang, Suizhou, Yichang, and other locations in Hubei. Annually, we sell over 1,200 units of 'FAW' commercial vehicles and receive high acclaim for our semi trailers of 'Honggang' brand. Moreover, we serve as a key equipment supplier for logistics companies like SF Express.
Huayue, is the automotive service complex, offering all of functions. We specialized in vehicle production, commercial vehicle sales, logistics transportation, international trade, after-sales service, and entire industry chain.We bulid a school-enterprise cooperative laboratory with Hubei University of Technology. Our bending machine and stamping positioning equipment for semi trailer modifications, have been widely applied with 12 utility model patents,which is listed in the Ministry of Industry and Information Technology's catalog of special-purpose vehicles.
Huayue, is the manufacturer with the most diverse range of vehicles. Our factory has the most advanced laser cutting machines,
Gantry submerged arc welding machines, ABB welding robots, and AGV intelligent vehicles and over 40 sets of automation machine. We are also the first in the province to introduce an intelligent painting production line for specialized vehicles. We can produce spanning warehouse fence semitrailers, Special equipment, Agricultural and livestock products transporters, Engineering machinery and power generation wind blade carriers over 6,000 armored vehicles annually. It is the crafting vehicles with high stability, reliability, and strong load-bearing capacity.

Workshop & Equipment ZAOYANG HUAYUE SPECIAL PURPOSE VEHICLE CO., LTD has the domestic first-class production equipment and the most advanced production line, we get the leading position in the same industry.

Our Team
Oversea Visiting & Service
Huayue, is the most ambitious pioneer in overseas market expansion. Our company integrates into the strategy of the Belt and Road Initiative, forming specialized teams to explore markets in North America, Australia, and Africa. Huayue International Investment Company has been established in West Africa, with KD factories and 4S stores setting up in the Republic of Benin. Currently, we have sold over a thousand vehicles in Africa, achieving export revenues exceeding 200 million RMB.

Our pursuit is boundless. Huayue will steadfastly advance on the path of serialization, branding, and high-quality development, striving to become a world-class manufacturer of specialized vehicles.

Huayue Autos, chasing excellence, driving brilliance!
