Proportional Valve for Truck Crane Technology with Load Sensitive Control

Product Description

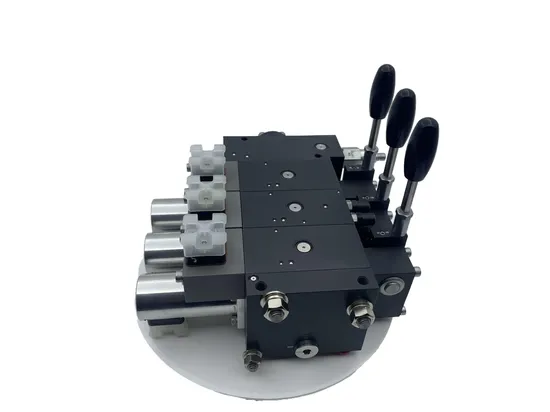

Product Description Introducing our groundbreaking HLPSL and HLPSV load-sensitive proportional multi-way directional spool valves. These revolutionary engineering marvels seamlessly integrate pressure, flow, and directional control into a singular, harmonious unit, guaranteeing unmatched performance and reliability. Typically composed of three essential functional modules-connecting blocks, directional valves, and end plates-these valves are meticulously designed for incorporation into high-end hydraulic systems, pivotal in top-tier engineering machinery. They precisely govern the movement direction and speed of hydraulic cylinders, motors, and other actuators, delivering unparalleled precision and control. Key highlights include a compact structure, superior energy efficiency, and the capability for stepless speed control. Additionally, they allow multiple actuators to operate simultaneously under varying loads, providing unrivaled performance and versatility for any application.
The HLPSL valves are expertly tailored for constant displacement pump systems, ensuring steadfast and reliable operation. Conversely, the HLPSV valves are masterfully engineered for variable pump systems. While HLPSV valves may exhibit a slightly slower response time, they excel in delivering exceptional energy-saving performance, making them the ultimate choice for applications where efficiency is paramount. With their cutting-edge engineering and energy-efficient design, HLPSV valves emerge as the premier solution for advanced hydraulic control requirements.
Detailed Photos Product Parameters

References		size 2	size 3	size 5
Number of Directional Valve bank		1~12	1~12	1~10
Port access type		thread connection	thread connection	thread connection
Flow code		3,6,10,16,25,40	3,6,10,16,25,40,63,80	16,25,40,63,80,120,160
Max.flow(L/min)		54	100	210
Max.pressure(bar)		420	420	420
Control Method	Pilot circuit pressure(bar)	20~40	20~40	20~40
	Manual force(N)	≥2.3Nm	≥1.3Nm	≥3Nm
Working Pressure(ºC)		-40~80	-40~80	-40~80
Weight	Connection Block (kg)	1.7	4	8
	Directional Valve bank (kg)	1.9	4	8
	End Plate (kg)	0.5	1.5	2.5
Fix mode		thread connection M8	thread connection M8	thread connection M10

Installation Instructions (1)Basic Code of Connection Block
HLPSL: Constant Displacement Pump;
HLPSV: Variable Displacement Pump;
(2) Port P & R of the Connection Block:
2-G3/8;
3-G1/2;
4-G3/4;
5, 55-G1;
6-G1 1/4;
(3)Additional Component:
C,Standard Type;
G,Throttle Valve (Only used for HLPSL);
H,Fixed Differential Overflow Valve for Improving the Circulating Pressure (about 14 bar, HLPSL);
(4)Pilot Oil Circuit Pressure:0 without pressure reducing valve; 1 with pressure reducing valve (20 bar); 2 with pressure reducing valve (40 bar);
(5)2/2-way Magnetic Ball Valve for System Unloading: C, without magnetic ball valve; F, normally open magnetic ball valve, in case of power supply, the pump is pressurized; in case of power failure, the pump carries out unloading; D: normally closed magnetic ball valve, in case of power supply, the pump carries out unloading; in case of power failure, the pump is pressurized; D../F. . , with Pressure Limiting Valve, it can serve as secondary pressure (F50) with pressure value indicated;
(6)Tool Adjustable, Pressure Limiting Valve in the Connection Block: Pressure limiting valve sets such as 63, 120, 210, 280, 315, 350, 400 bar; /NF: without pressure limiting valve (only for HLPSV);
(7)Product Series: -2 series;-3 3 series; -5 5 series;
(8)Thread size of directional spool valve ports A & B: 2-G3/8; 3-G1/2; 4-G3/4; 5-G1; A, ancillary block or intermediate transition block ZPL 5S(V)/H hydraulic control shut-off valve;
(9)Directional valve block inflow controller: 1, without inflow controller; 2, standard inflow controller; 4, 3-way flow controllers for inlet and outlet (ideal for N 3/3-way valve); 5, strengthened inflow controller; 8, pre-selectable;
(10) Function symbol of valve core: L, M, F, H, J, B, R, O, N;
(11) Output flow code of ports A & B: Choose from maximum output flows of ports A & B: 3, 6, 10, 16, 25, 40, 63, 80, 120, 160, 210 (L/min);
(12) Secondary pressure limitation: N, no pressure limiting protection; C, limit the pressure of actuator ports A & B simultaneously; A---B---, limit the pressure of actuator ports A & B separately, unit (bar);
(13) Function ON/OFF and pressure outlet: N, without function ON/OFF and pressure outlet; X C type pressure limitation; S/S1 AB type pressure limitation; A, electrical ON/OFF on side A; B, electrical ON/OFF on side B;
(14) Operation manner: A(1,2), manual operation with long handle (1=without handle, 2=with short handle); E, electric proportional control; EA(1,2), electric proportional control and manual operation (1=without handle, 2=with short handle); D, electric switching value control; DA(1,2), electric switching value control and manual operation (1=without handle, 2=with short handle); M, manual friction positioning with long handle; H, pure hydraulic control (two pilot oil ports align with oil ports A and B); F, pure hydraulic control (two pilot oil ports are perpendicular to oil ports A and B and outward respectively);
(15) Ancillary block: /2 Ancillary block port size G3/8; /3 Ancillary block port size G1/2; /4 Ancillary block port size G3/4; /5 Ancillary block port size G1;
(16) End plate: E1, standard end plate, external discharge of pilot oil, connecting oil return control port T externally; E2, similar to E1, external discharge of pilot oil, port Y is additionally attached; E3, external discharge of pilot oil, a 2-position 3-way magnetic ball valve is mounted; in power supply scenarios, the system pressure rises to the safety valve pressure;
E4, similar to E1, internal discharge of pilot oil, port T can be sealed; E5, similar to E2, internal discharge of pilot oil, port T can be sealed; E6, similar to E3, internal discharge of pilot oil, port T can be sealed;
(17) Control voltage and the length of anti-explosion type cable: G12-12VDC;G24-24VDC; G24Ex-3m-24VDC; G12Ex-3m-12VDC; G24MA-3m-24VDC; G12bb621436Company Profile Since our inception in 2009, Jiangsu KM Hydraulic Control System Co., Ltd. has risen as a beacon of groundbreaking innovation and unparalleled excellence in the hydraulic industry. As a prestigious member of the China Baoan Group (stock code: 000009), we proudly stand as a national high-tech enterprise. Specializing in the research, development, manufacturing, and sales of premium hydraulic components, our distinguished status as a national 'specialized, refined, and innovative' small giant enterprise underscores our unwavering commitment to technological advancement and superior quality. This dedication positions us prominently as leaders in our field.
