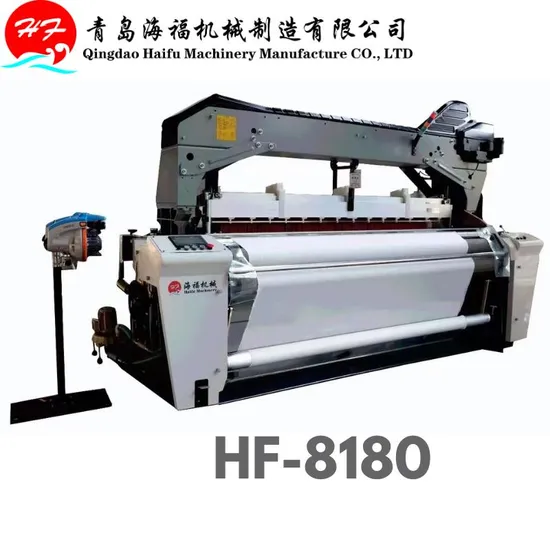

Electric Cam Shedding Super Fast Heavy Water Jet Loom Weaving Machine Hf-8180

Product Description

HF-8180 SUPER FAST HEAVY WATER JET LOOM Product Description
Use short stroke to beat the weft, adapt to high-speed weaving, and reduce the damage of reed to fabric From the mouth to shorten the fabric take-up roller thorn cloth length, reduce the spring back, improve the stablity of the textile export Rack increase longitudinal support, improve rack stablity Eccentric shaft structure, reducing vibration beating 1-4 color crank opening or crank 6 linkage configuration Stable beam tension structure of negative slack Line of position to reduce the height of 40mm, which not only reduces the loom focus, improve the stablity and easy operation
Detailed Photos
Spare Parts Details
All bearing are imported from GemmerFAG, Japan NSK
Imported Nozzel, water pump, spring one-way valve enhances the bunding of water spray
HF Loom Lord wallboard adopts high grades cast iron, Seamless steel pipe Kingpiece-solid frame, vibration noise reduction
The machine is stably, the efficiency high, the service life long spraying of water loom
Product Parameters

Sr. No	Model Name:WATER JET LOOM HF8180
1	Width of Machine:	150 170	190	210	230	260
		280	320	360	380	400
2	Control Panel:	Denken	XINLIAO	Sanhe	Inovance
3	Weft Yarn Insetion:	Drum	One	Two	Three	Four
	Feeder	ROJ	Sanhe	XINLIAO	Zhongsen
4	Motor	2.2KW	2.8KW	3.2KW	3.6KW	4.2KW
4	Shedding	Plain	Cam	Dobby	Jacquard
5	Shedding Brand	Staubli	Niupai	Changshu	Longpai
6	Frames	6	£8	10	12	16
	Frames Brand:	New Lite	Haifu	Niupai	Star Lite
7	Beam	800mm Flange	914mm Flange	1.5	2
8	Cloth Roller (2 PCs)	Aluminium Heavy	1.5	2
9	Reed (2 PCs)	1.5		2
	Take up	Mechnical		Electronical
	Let off	Mechnical		Electronical
10	Bearings in Box	NSK		FAG
11	Machine Cover	Plastic		Steel
12	Nozzle	MDH Korea
13	Valve Sheet	AWA Japan		MDH Korea
14	Heald Wires	Negentec	Sanmenxia	Haifu

Company Profile

Exhibition View

FAQ
Q: Are you a manufacturer or Tradle Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer reasonable price.
Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative
information to Dromote a face-to-face meeting if your'd like to.
Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement
