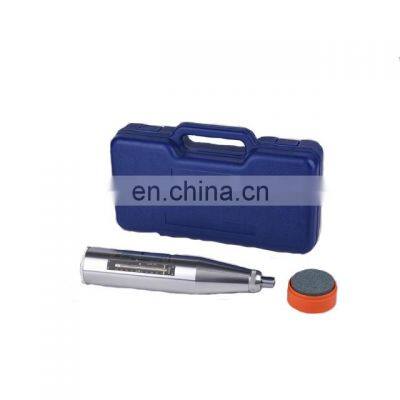

Taijia Schmidt Hammer Type N Silver Schmidt Concrete rebound Test Hammer

Product Description

Product Description
Taijia smith hammer test, impact test on concrete, schmidt hammer for concrete compression test machine rebound hammer IntroductionHT-225 is applied to test the compressive strength of building concrete components, bridge and so on. HT-225 submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. Features1.Center rod is made from imported material.2. High Aluminum case extend use life.3. High accuracy and durable resistance.4. Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Technical InformationStandard impact energy2.207±0.1J (0.225Kgf.m)The static friction of pointer slider0.65N±0.15NLength of spring stretch75±0.3mmAverage rebound hammer on steel anvil Rm80±2Measuring Range10~60MpaRadius of spherical tip25mm±1mmWorking Temperature-10℃~+50℃Working Humidity≤90%RHDimensionsΦ54x280mmNet weightAbout 1.0Kg Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you. FAQFAQ for Our Company 1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment. 2. MOQ:1set 3. We accept T/T. Western Union.PayPal & Secure Payment 4. We offer 18 Month's Warranty on all product 5. Service express company:TNT/DHL/FedEX.
