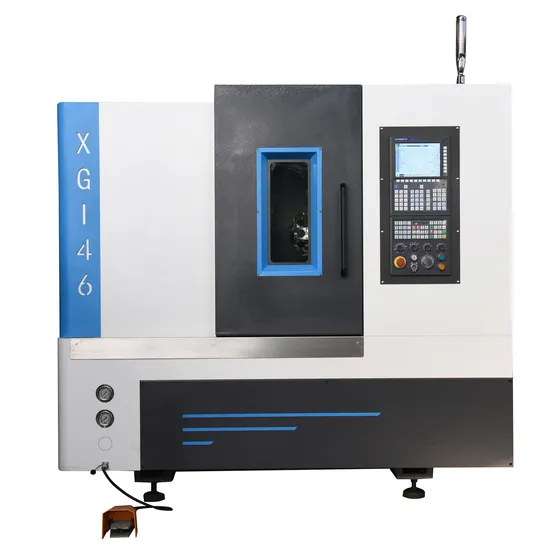

XG46MY SLANT BED TURNING AND MILLING COMPOUND CNC LATHE

high precision A2-5 hydraulic collet chuck
spindle bore diameter 56mm
max speed 5000rpm/min


Taiwan brand power tower
BMT70-Y-35-12T
The power turret integrates the functions of turning, milling, drilling and boring, which can complete multiple processes of complex parts on the same equipment, reduce the secondary clamping, and improve the processing efficiency and accuracy.
Machine main features
The 30degree slant design,made of high quality resin sand,two bed frame structure aging treatment,high rigidity and precision stability.
The import precision ball screw and linear guide rail, can realize the H level maching.
The high precision spindle unit,hydraulic clamping system to ensure the smooth operation of high-speed spindle.
The linear gang tools frame structure,good repeatability,high overall efficiency.
The spacious interior space,long stroke,the u,grading of the range.
The built-in rear chip structure,transformation of multiple on-line automatic production line is more reasonable.
Main specification

Item	Speicification	XG46MY
Capacity	Max swing overbed	450mm
	Max.cutting workpeiece length	Φ210mm
	Max.cutting diameter length	300mm(disc type)
	Bar diameter	Φ45mm
Spindle	Maximum spindle speed	5000r/min
	Dia of spindle bore	56mm
	Spindle taper	A2-5
	Spindle motor power	5.5kw
	X/Z axis servo motor power	1.8kw
	Y axis servo motor power	1.5kw
	Power axis motor power	1.5kw
	Hydraulic collet size	6inch
	Hydraulic cylinder	TH646
Rapid traverse	X-axis rapid traverse	25m/min
	Z-axis rapid traverse	25m/min
	Y-axis rapid traverse	15m/min
Axis stroke	X-axis rapid traverse	400mm
	Z-axis rapid traverse	380mm
	Y-axis rapid traverse	240mm
Accuracy	Positioning accuracy	±0.005mm
	Repeat positioning accuracy	±0.003mm
Tool	Linear multi station tool post	20*20mm
	Linear multi station tool for boring,drilling	φ20/φ25
	Servo tower model	63-8T
	Center height	63mm
	Shank size	20*20
Other	Chip removal direction	back row
	Dimension(L*W*H)	2280*1520*1750mm
	Weight	2500kg
