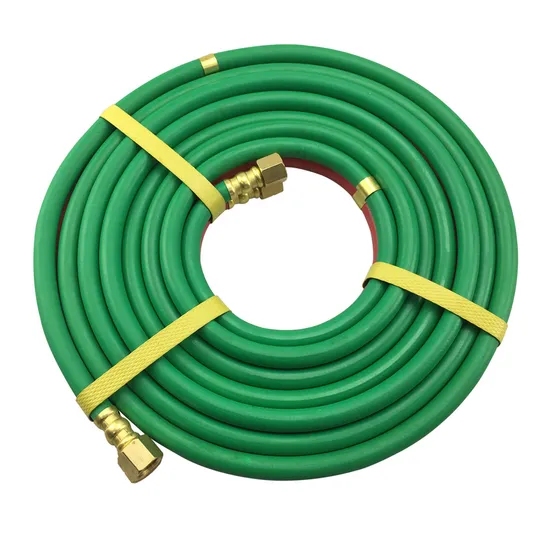

En559 Red/Green 1/4′′x 25FT Welding Twin Hose for Shipyard

Product Description

Product Description Construction: Tube: SBR + NR Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM Synthetic Rubber
Temperature: -25ºC to +80ºC
Color: Red & Green or Red & Blue etc.
Application: Mainly used for oxygen / acetylene gas welding; inert gas (such as argon gas and helium gas etc.)
Standard Length: 25FT, 50FT, and 100FT
Joint Connection: Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;
Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc
Brass teeth of American system (G9/16-18N), America, Middle East and South America etc.
Australian system (5/8-18N), Australia etc

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Length	Measurement	Weight
inch	mm	mm	bar	psi	bar	psi	FT	cbm/roll	Kg/roll
3/16"&3/16"	4.8	11.5	20	300	60	900	25	0.0048	2.5
3/16"&3/16"	4.8	11.5	20	300	60	900	50	0.009	4.0
3/16"&3/16"	4.8	11.5	20	300	60	900	100	0.018	8.0
1/4"&1/4"	6.4	13	20	300	60	900	25	0.004	2.6
1/4"&1/4"	6.4	13	20	300	60	900	50	0.01	5.5
1/4"&1/4"	6.4	13	20	300	60	900	100	0.02	11
5/16"&5/16"	7.9	15	20	300	60	900	25	0.007	3.45
5/16"&5/16"	7.9	15	20	300	60	900	50	0.012	6.8
5/16"&5/16"	7.9	15	20	300	60	900	100	0.022	13.5
3/8"&3/8"	9.5	17	20	300	60	900	25	0.009	4.3
3/8"&3/8"	9.5	17	20	300	60	900	50	0.015	8.1
3/8"&3/8"	9.5	17	20	300	60	900	100	0.024	15.9

Detailed Photos
Packaging & Shipping
Our Advantages 20 years manufacturing experience
50 sets of high-speed braiders
Complete testing equipment
Free Sample / Customized packing
Workshop
Testing Equipment
Certifications
Trade Show
Hangzhou Paishun Rubber and Plastic Co., Ltd established in 2007, is a rapid growing enterprise who integrate the production and marketing of rubber industrial hoses, rubber hydraulic hoses, and hydraulic hose fittings.
After 8 years effort and development, now we have become one of the leading rubber hose manufacturers and suppliers in China. We have been enjoying high reputation in rubber industrial hose and hydraulic hose market domestically and internationally.
Hangzhou Paishun Products Range:
Our factory focus on manufacturing Rubber industrial hoses, which include Rubber air hose , Rubber water hose , LPG gas hose , twin welding hose , rubber fuel hose.
Our stock-shared factory focus on manufacturing Rubber hydraulic hose , which includes SAE 100R1 , SAE 100R2 , SAE 100R7/ R8 , EN856 4SH , 4SP , SAE 100 R9 , R10 , R12 , SAE 100R14 Braided PTFE hose , Hydraulic hose fitting and ferrule ; Air conditioning hose ; Refrigerant charging hose .
We are very professional and have full experience in crimping fittings and quick release couplings on hoses. Such as rubber air hose assembly, contractor garden hose assembly, washing machine hose assembly, LPG hose assembly, hydraulic hose assembly, high pressure washer hose assembly, paint spray hose assembly, etc.
We are capable of supplying our products in various kinds of packaging according to customers' specific requirements.
Now our rubber hoses and hose assemblies are exported to USA, Canada, Italy, UK, Norway, Russia, Spain, Portugal, Denmark, Australia, Japan, Thailand, Sri Lanka, Peru, Brazil, Venezuela, South Africa etc, about 50 countries all over the world.
PASSION® Rubber hoses are approved by CE, SGS, TUV.
But Hangzhou Paishun have never stop going forward, in order to supply more rubber hoses to our customersand enlarge the production range, in 2012, together with our partner, we build another factory, which produce silicone auto rubber hoses in Jiangsu China.
Hangzhou Paishun's Professional Production and Service:
Hangzhou Paishun sales office has 5 professional teams, Financial department, Documentation department, International sales department, Domestic sales department, Inspection department. Hangzhou Paishun factory has 5 main experienced and professional teams: Project procurement section, Labor service section, Technology section, Production department, Quality inspection section.
Hangzhou Paishun's staff always believe in " PASSION FOR HOSE, PASSION FOR YOU! ". Quality and Service are always the top concern in Hangzhou Paishun. We are always trying our best to offer the best service and competitive price based on the good hose quality. It's the way we win our customers and the market.
Given chance and full space, we would show you all of our advantages and let's grow up together. Hangzhou Paishun is sure that we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service and hose quality.
