Semi-Auto Pet Plastic Blowing Blow Molding Equipment
| US$4,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CGF
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Non-Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008
After-sales Service
for Year
Suit
200ml 500ml 1000ml 1500ml 2000ml
Model
2-Cavity Semi-Auto
Suit Bottle Material
Pet Plastic Bottle Making
Another Model
5000ml 20000ml
Transport Package
Wooden Case
Specification
SB-150
Trademark
tango
Origin
Zhangjiagang, China
HS Code
8422301090
Production Capacity
20set Each Month
Product Description

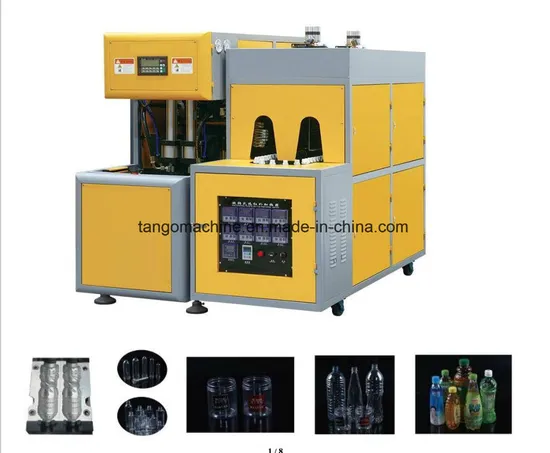

Semi-auto blow molding machineSummary
Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate
Finished product workshop photo:
Automatic blow molding machine
