Automatic Production Travel Sanitary Disposable Toilet Pads Seat Equipment Making Machine

Product Description

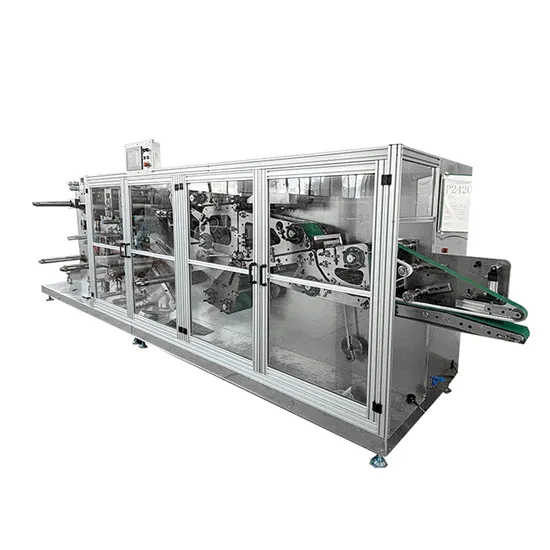

Disposable PE and paper film toilet pad making and folding machine
For disposable toilet pad machine,we can do 3 types raw material, PE,non-woven fabrics and tissue.And also accept customized special disposable toilet pad machine.
For this kind of products we can do a lot of different size.
Product Parameters

Production speed	60 m/100pcs/minute
Folding method	Longitudinal W-fold, three consecutive transverse folds
Installed power	About 12 KW
Power supply	380V;50Hz;
Input Air Source	0.6mpa-0.8mpa.
Machine size	6×6×2.5

Detailed Photos

Our Advantages
The main configuration and process description Process: coil feeding → hot press sealing → cutting holes → longitudinal folding → cutting → horizontal folding for three consecutive times → docking packaging machine → product output.
Frame: modular frame, with fixed standard size. The wall panels of the frame are clad in stainless steel. The production process is advanced and reasonable, the base level of the wall panel is smooth, not easy to deformation, and the stainless steel coating treatment is welded with the steel frame. Transmission system: the conveyor belt is arranged in the direction of the machine, and the servo motor is used to drive the high-precision synchronous wheel. Material unwinding frame: high precision servo control material tension, manual automatic correction. Hole cutting: The cutting tool and bottom roll are processed with high-quality die steel, and the incision is neat without flash. Longitudinal folding: Adopt the company's unique multi-folding rod form, longitudinal folding layer number and size range can be adjusted continuously. Forming cutter: cutter and bottom roller are processed with high-quality die steel, cut off neatly without adhesion. Finished product lateral folding device: This device is used for the horizontal folding of the product for 3 consecutive times, transmitted by the servo motor and automatically adjust the phase. Quality control: The folding process shall not cause secondary damage to the material, stretching and other functional or performance damage. There should be no dirt or foreign object in the process, especially oil. 9. Connect one packaging machine to the host.

Company Profile
Changzhou Jujin Automation Equipment Co., Ltd. is located in Changzhou City, Jiangsu Province. It is only 180 kilometers away from Shanghai and Shanghai Port.
The company was established in 2008 and has had 16 years of manufacturing experience so far. There are more than 100 employees in the whole company.
The company has three major products. Firstly, there are disposable medical products, such as medical bed cover machines and surgical hole drape of various sizes.
Secondly, there are hotel products, like disposable toilet seat covers, disposable sanitary napkins, disposable towels and so on.
Thirdly, there are hygienic consumables such as baby bibs, baby aprons, pet pads and so on. Besides the above mature models, Jujin can also manufacture customized machines. The company has its own design team. Up to now, the customized machines of the company have been sold to more than 25 countries. Jujin provides one-stop services from design to transportation. Customers from all over the world are welcomed.
Exhibition Display

Certifications

FAQ
1.Q: Are you a factory or trading company?
A: We are a factory ,welcome the clients.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in ChangZhou City,Jiangsu province China.
3.Q: How long is the warranty period ?
A: ONE year.
4.Q: How about the installation? Do you have after-sale service?
A: We will send professional technician to your company to install the machine and train your staff until they could operate the machine independently.
5.Q: Why should we choose your company?
A:Because we can produce customized machine .We have our own design team ,and so many professional engineers.
