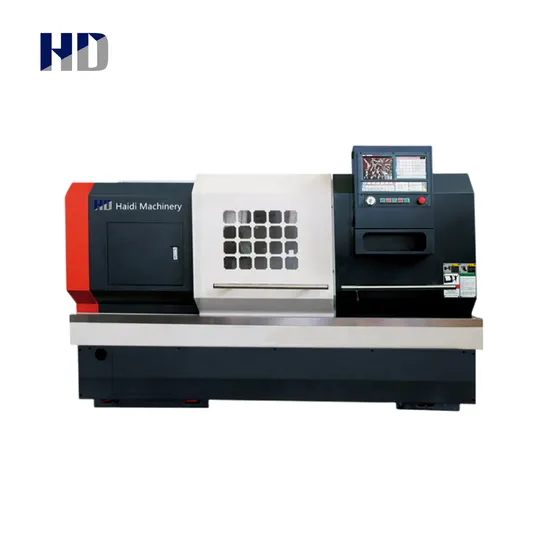

Ck6140 High Precision Horizontal CNC Turning Lathe
Basic Info.
Model NO.
CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Lathe
Swing Over Bed
400mm
Swing Over Cross Slide
240mm
Max. Workpiece Length
550/750mm
Max. Turning Length
420/620mm (Chuck)
Spindle Nose
A2-6/A2-8
Spindle Bore Diameter
48/82mm
Taper of Spindle Hole
Collet / Metric 90
Spindle Speed Range
150-2500/150-1800r/Min
Spindle Shift Mode
Stepless
Spindle Motor
5.5kw
Chuck Type
Collet/ Manual Chuck
Chuck Size
8 Inch
X/Z Rapid Traverse
X:6 Z:8m/Min
Z Axis Travel
550/750mm
Transport Package
Wooden Cases
Specification
2000*1600*1700mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
230.00cm * 190.00cm * 200.00cm
Package Gross Weight
2420.000kg
Product Description
Specification Parameter
| Specification | Unit | CK6140 | CK6150 | CK6160 |
| Swing over bed | mm | 400 | 500 | 600 |
| Swing over cross slide | mm | 240 | 250 | 395 |
| Max. turning dia.( disc type) | mm | 400 | 500 | 600 |
| Max. workpiece length | mm | 550/750 | 1000/ 1500/2000 | 1000/ 1500/2000 |
| Max. turning length | mm | 420/620 (chuck) | 850/ 1350/ 1850 | 850/ 1350/ 1850 |
| Spindle nose | / | A2-6/A2-8 | A2-8/A2- 1 1 | A2-8/A2- 1 1 |
| Spindle bore diameter | mm | 48/82 | 82/ 130 | 82/ 130 |
| Taper of spindle hole | mm | Collet / Metric 90 | Metric 90/ Metric 140 | Metric 90/ Metric 140 |
| Spindle speed range | r/min | 150-2500/ 150- 1800 | 150- 1800/ 150-800 | 150- 1800/ 150-800 |
| Spindle shift mode | Stepless | Stepless | Stepless | |
| Spindle motor | kw | 5.5 | 7.5 | 7.5 |
| Chuck Type | Collet/ manual chuck | Manual chuck | Manual chuck | |
| Z axis travel | mm | 550/750 | 1000/ 1500/2000 | 1000/ 1500/2000 |
| Guide way type | / | Hard rail | Hard rail | Hard rail |
| Capacity of turret | / | 4 | 4 | 4 |
| Tailstock sleeve dia. | mm | 60 | 75 | 75 |
| Quill traverse | mm | 100 | 150 | 150 |
| Quill taper | / | MT4 | MT5 | MT5 |
| Machine dimension | mm | 2000/2200*1600*1700 | 2650/3250/3750*1700*1820 | 2650/3250/3750*1700*1820 |
| Net weight | kg | 1900/2200 | 2700/3100/3300 | 2800/3200/3400 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ
