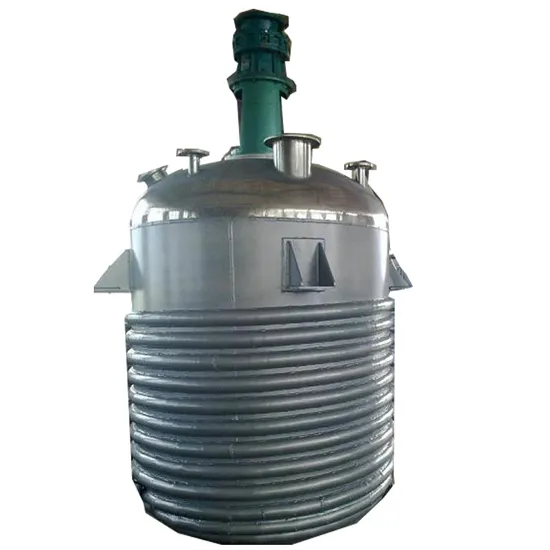

50L to 50000L Stainless Steel304/321/316L Limpet Coil Hot Oil Heating Alkyd Resin/Nitrile Latex Gloves Polymer Reaction Pressure Tank Vessel Reactor

Product Description

Product Description
Stainless steel reactors are mainly used in chemical reaction processes such as hydrolysis, neutralization, distillation, storage, synthesis, polymerization, polycondensation, alkylation, polymerization, condensation, nitrogen fixation, extraction, polymerization, hydrogenation, nitrification, halogenation, sulfonation, amination, acylation, cyanidation, etc. It is widely used in chemical, food, coating, hot melt adhesive, silica gel, paint, pharmaceutical and chemical production.The stainless steel reactor is mainly composed of kettle body, kettle cover, agitator, jacket, support and transmission device, shaft seal device, etc. The material and opening can be formulated according to the user's process requirements.
Heating forms include electric heating, oil heating, steam heating, water heating, outer coil semicircular tube heating, etc.
The jacket form is divided into jacket type and outer half-pipe type, and the jacket heat transfer oil heating type is equipped with a flow guide device.
The cooling method includes the cooling water through the jacket or the cooling water through the inner and outer coils of the kettle.
The mixing forms generally include paddle type, anchor type, frame type, screw type, scraper type, combined type, etc.
The high-speed type includes dispersed impeller type, turbine type, high-shear type, and propeller type for customers to choose the process.
The transmission forms include ordinary motors, explosion-proof motors, electromagnetic speed-adjustable motors, frequency conversion motors, etc., and the reducers include cycloidal pinwheel type, helical gear type, and planetary infinitely variable speed type.
Shaft seals include packing seals, magnetic seals, mechanical seals, and magnetic fluid seals.
The discharge forms include ball valve, downward expansion valve, butterfly valve, etc.
Characteristics
1. The stainless steel material has excellent mechanical properties, can withstand high working pressure, and can also withstand the impact of bulk solid material feeding.
2. Good heat resistance, wide working temperature range (-196~600°C). It will not oxidize and peel at higher temperatures, so it can be used for direct fire heating.
3. It has good corrosion resistance and no rust; the heat transfer effect is better than that of the enamel reactor, and the heating and cooling speed is faster.
4. It has good processing performance, and can be made into reaction kettles of various shapes and structures according to process requirements. The wall of the kettle can be polished so that it does not hang material and is easy to clean.
Product Parameters
Notes:
(1) Our company can design the equipment according to the user's specific requirements.
(2) For the last update of the technology, we will change the technical data without notice, and the correct parameters are subject to the real product.
(3) If you are unsure which type to choose, please call us, and our professional sales engineers will recommend one for you. FAQ
Q1. What are your terms of packing?A: Generally, we pack our goods in plywood cases. If your goods have one container, the goods can be packed without plywood, just be wrapped with the film to load.Q2. What are your terms of payment?A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What are your terms of delivery?A: FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take about 30 days after receiving your advance payment for the customized machine. The delivery time depends on the items and your order quantity.Q5. Can you produce it according to the drawing?A: Yes, we can produce according to your technical drawings. If you don't have the drawing, just tell us your need and our engineer will make the drawing for your reference.Q6. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ7. How do you make our business long-term and good relationship?A:1. We keep good quality and competitive prices to ensure our customers benefit;2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.
