Factory Price CE Approved Making AAC Block Machine

Product Description

Product Description
Features

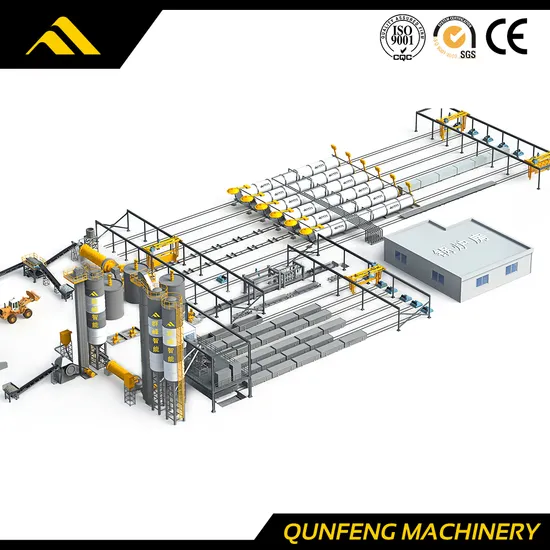

(01)Belt Conveyor (02)Batching Machine (03)Roller Screen (04)Grinding Head Silo (05)Wet Ball Mill (06)Jaw Crusher
(07)Dust Catcher (08)Bucker Elevator (09)Silo For Coarse Lime (10)Dry Ball Mill (11)Silo For Fine lime (12)Cement Silo
(13)Screw Conveyor (14)Slurry Storage Tank (15)Weighing Hopper For Slurry (16)Weighing Hopper For Lime And Cement
(17)Ferry Cart (18)Turning Crane (19)Vertical Cutting Machine (20)Horizontal Cutting Machine (21)Turning&Grouping Crane (22)Curing Cart (23)Autoclave (24)Finished Product Crane (25)Block Clamping Machine (26)Winch For Side Plate Return Technological process: 1. First, dose and match measured raw materials; 2. After distributing, feed raw material into pouring mixer to make slurry. 3. Through thoroughly mixing, the slurry is poured to mould; , 4. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting; 5. Tilting hoister would turn over 90 degrees of mould; 6. Then open the mould and separate it from block. And take the block with side plate to the cutting cart; 7. Firstly, the cutting machine vertical cuts blocks from both sides. 8. Secondly the horizontal cutting; 9. Finally the vertical cutting; 10. After cutting, the block is hanged to trolley with side plate by semi-finished product hoister; 11. Organizing the cut blocks and put them into autoclaves; 12. Hardening the blocks under certain temperature and pressure; 13. Carry the finished product out of autoclave 14. The finished product hoister take the finished product to stock shield; 15. Packed for loading; 16. The side plate return back through side plate roller; 17. Side plate would be organized with open mould; . 18. Clean the mould and prepare for next pouring; 19. Steel bars processing line for slab production.
