X6325D Universal Metal Variable Speed Milling Machine

X6325D Universal Metal Variable Speed Milling Machine

US$2,500.00-4,500.00 1 set (MOQ)

Basic Info.

Model NO.
X6325D
Object
Matel
Structure
Turret
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
254X1370mm
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Trademark
SJMC
Origin
China
Production Capacity
20untis/Month

Product Description

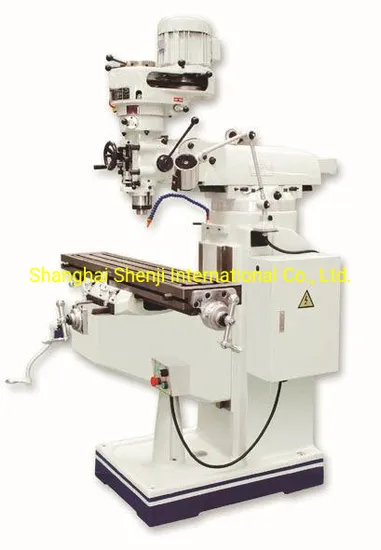

X6325D Turret Milling Machine
Milling Machine main performance characteristics:
Main features:
1.High rigidityand quality casting iron, and saddle guide-way is coated by TF-material.
2.Variable speed milling head made in Taiwan, step speed milling head and inverter millinghead can be equipped as optional accessories.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
5HP milling head from Taiwan
Leadscrew from Taiwan SHIYMIN
Guideway with Tuicite B cover
ISO40 spindle
Spindle bearing with P4 class

Model

X6325C
X6325D
Table size
mm
254×1270(10"×50") 254×1370(10"×54")
Long travel
mm
820 920
Cross travel
mm
410
Vertical travel
mm
400
T-slot No.and size
mm
3×16
Ram travel
mm
470
Distance from spindle nose to table surface
mm
0-400
Spindle hole taper

(standard):ISO40
Spindle travel
mm
127
Spindle speed
rmp
(standard):(shiftgrade)50HZ65-4500 60HZ:80-5440
(optional):(variable)65-3750
Auto.quill feed

(threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor
kw
3.7 kw/5HP
Head swivel
°
90°
Head tilting
°
FIX
45°
Dimension of package
mm
One miller per case
1516×1550×2080
Two miller per case
1650×1790×2170
G.W/set
kg
1490


Model
unit
X6330
X6330A
Worktable size
mm
305*1370(12*54)
305*1500(12*60)
Worktable longitudinal trabel
mm
870
1000
Worktable cross travel
mm
380
Worktable vertical travel
mm
430
T- slot No. and size

3*16
Ram travle
mm
500
Distance from spindle nose to table surface
mm
0-350
Spindle hole taper

Standard:ISO40
Spindle travel
mm
127
Spindle speed
mm/min
Standard: Step speed 16 steps: 50HZ 65-4500,60HZ 80-3750
Optional:Stepless:65-3750
Auto. Quill feed
mm
3 steps:0.04(0.0015)/0.08(0.003)/0.15(0.006)
Spindle motor

3.75kw/5hp
Head swivel

90°
Head tilting

45°
Fixed type
Packing dimension
One miller per case
mm
1566*1650*2080
Two miller per case
mm
1720*1800*2175
three miller per case
mm
1650*2285*2235
G.W/SET
kgs
1700
1750

Specifications:
Item / Model Unit X6333 X6333A
Table size mm 330×1370(13×54") 330×1500(13×58")
T-slot Nu.& size 3 × 16
Table longitudinal travel mm 820(1000)
Cross travel mm 380
Knee vertical travel mm 460
Distance from spindle to table mm 0-450
Ram travel mm 500
Spindle taper ISO40
Quill travel mm 127
Spindle peed r/min 50HZ:65-4500 60HZ:80-5440
(optional variable):60-3600
Quill feed rate mm/rev 0.04/0.08/0.15
motor power kw 3.7
Head swivel (Right / Left) degree -90/+90
Head swivel (up / down) degree -45/+45 (Fixed)
Packing size mm 1set/pallet 1800×2020×2200
2set/pallet 1800×2200×2200
G.W. kg 2200 2250
