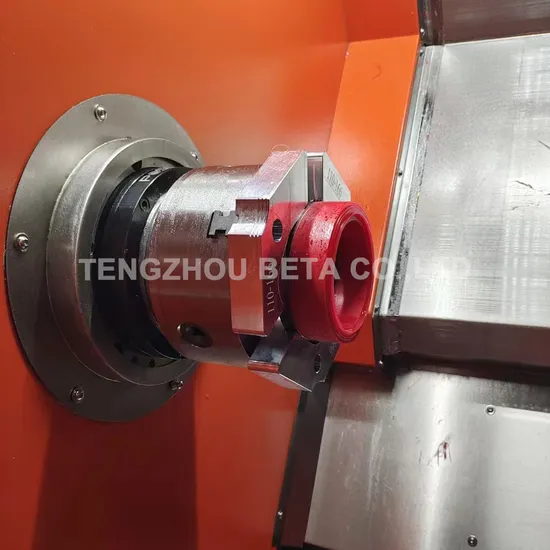

Slant Bed Rubber Hydraulic Oil Seal Making CNC Machine with Siemens Control
Basic Info.
Model NO.
CS400
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
8 Station Turret
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Slant Bed Rubber Hydraulic Oil Seal Making CNC Mac
Max. Seal Diameter
400mm Seal Making
Delivery Time
2 Months
Color
Red White
Turret
Horizontal 8 Station Turret
Clamping
Manual Clamping Kit
Warranty Period
12 Months
Other Name
Seal Maker
Voltage
380V
OEM
Available
Cutting Tools
Provided
Software
Provided
Suction Machine
5.5kw
Transport Package
Wooden Case
Specification
400mm diameter seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month
Product Description
| Specification | CS400 |
| Max. Turning diameter over bed | 450 mm |
| Max. Seal Turning diameter | 400 mm |
| Spindle | A2-5 |
| Spindle bore diameter | 56 mm |
| Max. spindle speed | 5000 r/min |
| Chuck size | 6 inch chuck |
| X-axis rapid move speed | 24 m/min |
| Z-axis rapid move speed | 24 m/min |
| X-axis travel | 220 mm |
| Z-axis travel | 450 mm |
| X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
| Z-axis motor | Siemens 2.29 kw / 11Nm |
| X-axis guide | SKF 30 |
| Z-axis guide | SKF 35 |
| Turret type | Horizontal 8 station VDI turret |
| X/Z axis ball leadscrew | Taiwan HIWIN SKF |
| Leadscrew bearing | Germany FAG |
| Spindle bearing | NSK |
| Electrical components | Schneider |
| Main motor power | 7.5 kw |
| CNC Controller | Siemens 828D controller |
| Motor power of suction machine | 5.5 kw |
| Machine weight | 2800 kg |
| Overall size of CNC lathe | 2750*1780*1920 mm |
| Overall size of Suction machine | 900*900*2000 mm |
| Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
