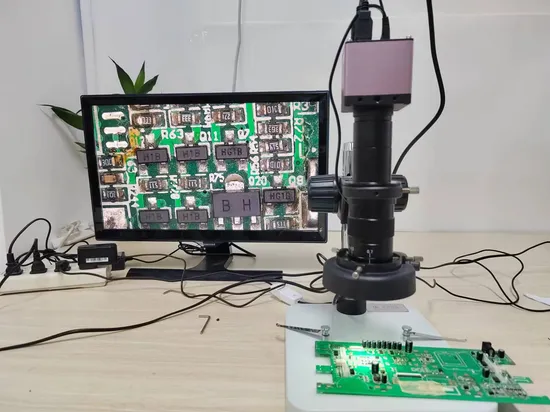

Electron Soldering Digital Screen Microscope Video Cheap Price for Mobile Phone Repair
| US$280.00-385.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
HD800MX
Magnification
50-100X
Type
Video
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Usage
Teaching, Research, Repair
Principle
Optics
Principle of Optics
Video
Name
Microscope
Model
Sgo-HD800mx
Original
China
Brand
Kwongkuk
Transport Package
Foam+Carton
Specification
450x420x120
Trademark
KWONG KUK
Origin
China
HS Code
9011800090
Production Capacity
10000
Packaging & Delivery
Package Size
50.00cm * 45.00cm * 30.00cm
Package Gross Weight
8.000kg
Product Description
Product Description| Main function | ||
| Photograph | Click the button to store the page photo to the storage device. | |
| Preview | Click the button to switch to the storage device to view photos or videos. | |
| Setting | Click the button to bring up the setting function page. | |
| Measurement (optional) | Click the button to bring up the measurement function page |
Optical system Specifications | Optical Len | 5A set |
| Optical conversion ratio | 1:6.4 | |
| Ratio of the objective | 0.7X-4.5X | |
| Camera eyepiece magnification | 0.5X | |
| Optical ratio | 0.35X-2.25X | |
| Video magnification | 25X-170X | |
| Field of view | 1.5*2.8-11*19mm | |
| Working distance | 110mm | |
| Center distance | 150mm | |
CCD System specifications | Resolution ratio | 1920*1080P |
| Sensor size | Samsung 1/3 | |
| Pixel size | 2.75um*2.75um | |
| Data bits | 12BIT | |
| Exposure mode | Rolling shutter | |
| HDR | Tertiary enhanced | |
| SE | Third order edge enhancement | |
| White balance | Manual/Auto | |
| Focus mode | Manual | |
| Output frame rate | 60fps | |
| Output mode | HDMI | |
| Output color | Colours/black and white | |
| Power output | 12V1A | |
| Fixed bracket system specifications | Focusing frame | Coarse moving focusing hand wheel,The focusing hand wheel is elastic and adjustable,Lift 0-65mm |
| Pillar stand | Diameter 25*355mm | |
| Working platform | 380*255*23mm | |
| Lighting System Specifications | External light source | LED ring light,input voltage:AV100-240V wide voltage,Adjustable brightness |
| Video display system specifications | Screen size | 21.5 |
| Screen ratio | 16:9 | |
| The image function | Picture format | BMP/JPG/PNG |
| Storage mode | U dish |
