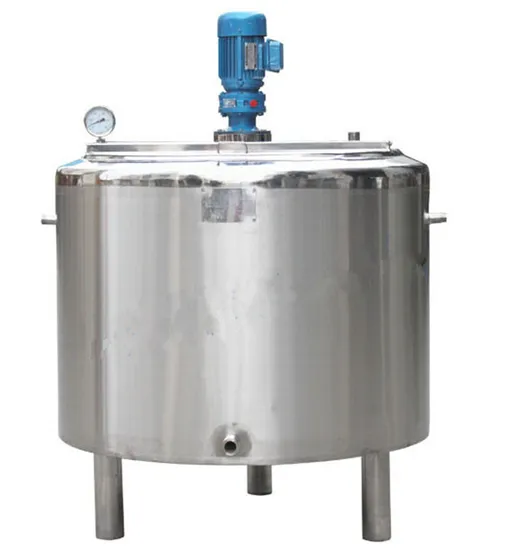

Stainless Steel Fruit Juice Heating Cooling Processing Holding Blending Tank

Product Description

Stainless Steel Fruit Juice Heating Cooling Processing Holding Blending Tank
Stainless Steel Aging Tank Maturation Tank For Ice Cream Industry
the broadest range of tank heating solutions in the electric heatingindustry.
Chocolate Melting Tank/Chocolate Mixing Tank
Normal Electric Heating Mixing tank with customized agitator
Mainly used for preserving and storing fresh milk or other fresh liquid. It's the ideal HEATING and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.
Heating tanks for milk, ice cream , jam , sauce, to pasteurize
asphalt, glue, adhesive, plastic, plastisol, wax. In addition to heated tanks
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
OEM is welcome too.
Stainless Steel Fruit Juice Heating Cooling Processing Holding Blending Tank
