China New Metalworking Siemens Controller Precision Slant Bed Metal Turning Lathe CNC Machine for Pump Screws Sale Price
Basic Info.
Model NO.
TCK6340S
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Turret, Gang Tools
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Slant Bed CNC Turning Lathe
Max.Swing Over Bed
400mm
Max.Processing Length
300mm
Tool Post Type
Standard Gang Type Tools
Spindle Motor
5.5kw Servo Motor
Chuck
Manual Chuck
Voltage
380V
OEM
Available
MOQ
1 Set
Delivery Time
1 Month
X Axis Travel
400mm
Z Axis Travel
500mm
Spindle Nose
A2-5
Slant Bed
45 Degree Slant Bed CNC Lathe
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Specification
500mm diameter seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

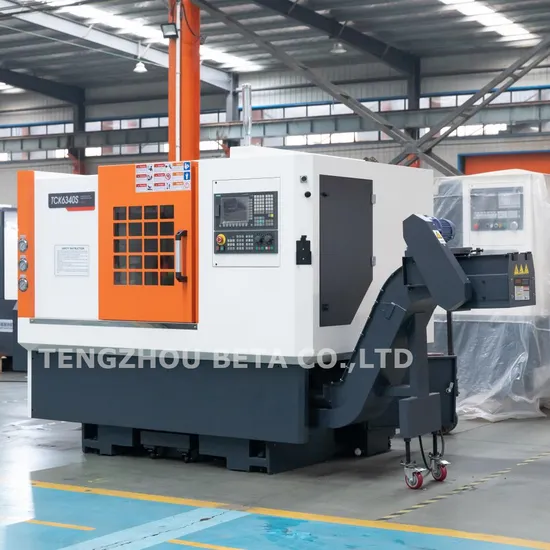

Slant Bed CNC Lathe Machine (Linear guideway, Without tailstock)Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 5.5kw servo,
Taiwan linear guide ways,
A2-5 spindle unit 140 with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret
| Model | Unit | TCK6340S |
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 140 |
| Max processing length | mm | 300 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Spindle nose | A2-5 | |
| Spindle bore | mm | 56 |
| Bar capacity | mm | 45 |
| Max spindle speed | rpm | 3500 |
| Spindle motor | kw | 5.5 servo |
| X/Z axis repeatability | mm | 0.005 |
| X/Z axis feed motor torque | N.m | 6/6 |
| X/Z rapid traverse | mm/min | 18/15 |
| Tool post type | Gang type tools | |
| Cutting tool shape size | mm | 20*20 |
| Guide way type | 45 degree slant bed | |
| Total power capacity | kVA | 9/11 |
| Overall dimension | mm | 2390*1530*1780 |
| Weight | kg | 2600/2800 |
