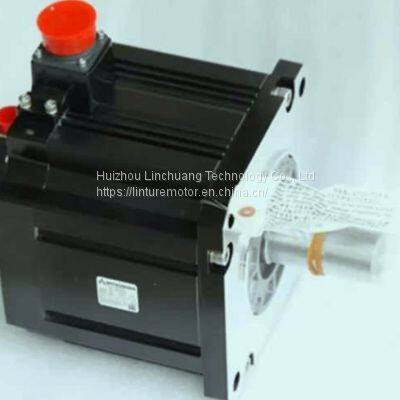

HF-SP201B Mitsubishi Servo Modular AC Semi Closed Loop Control

Product Details

Product Description

Product Description
Rated Output::SRated Speed::Power Supply Specification:Brand:Model Item:Plan Of Original:High Light:

11.0kW	2000 RPM
200-230VAC 3-phase	Mitsubishi Servo Motor
HF-SP201B	Japan
ewing machine servo motor,electric servo motor

MITSUBISHI HF-SP201B Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power servo motor
Model: HF-SP201B
Servo motor series: medium inertia, medium power.
Rated output: 2.0kw.
Rated speed: 1000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!
Motor: HA-SH type.
Power: 7.0kw.
Speed: 2000r/min.
The speed regulating motor can be divided into a constant speed motor, a stepless constant speed motor, a stepless speed changing motor and a stepless speed changing motor,
Can also be divided into electromagnetic induction motor, DC motor, PWM variable frequency motor and switched reluctance motor MITSUBISHI HF-SP201B.
The rotor speed of the induction motor is always slightly lower than that of the rotating magnetic field HF-SP201B
The rotor speed of the synchronous motor is not independent of the load size, but is always maintained as a synchronous speed. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 3.5kw.
Interface type: general pulse interface type MITSUBISHI HF-SP201B.
Power specification: three phase AC200V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.
The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine.
MR-J3, your partner.
Higher performance, more features, more convenient to use MITSUBISHI HF-SP201B.
Highest performance in the industry.
Speed response frequency up to 2.1kHz. Servo motor series: low inertia, medium / high power.
Rated output: 0.75kw.
Rated speed: 3000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connnection is reduced by using the power source connector HF-SP201B.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning annd acceleration / deceleration operations, especially for injection molding machines and large presses HF-SP201B.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
