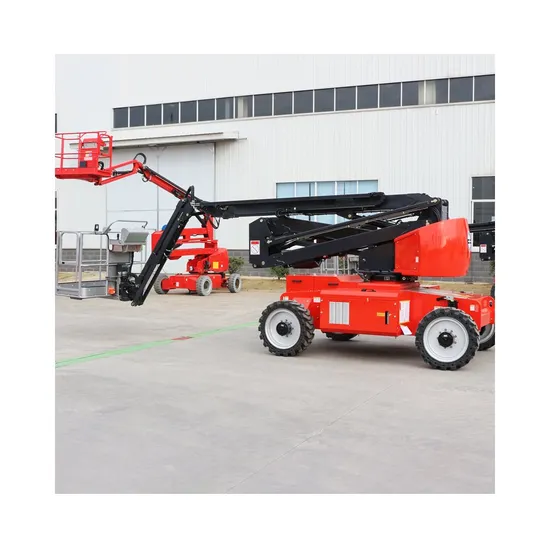

10-20m Building Material Shops Telescopic Articulated Lift Mini Towable Boom Lift
Basic Info.
Model NO.
EAB22J
Application
Workshop Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Working Height
6-63m
Color
Customers′ Requirements
Weight
18500 Kg
Power
75kw
Overall Dimensions
10300*2200*1200mm
Product Name
Hydraulic Platform Lift
Transport Package
Box
Specification
10300*2200*1200mm
Trademark
everstar
Origin
China
Production Capacity
500000 Set/Years
Product Description
Product DescriptionDetailed Photos
Product Parameters
16-34m Diesel Telescopic Boom Lifts
| Model | ETB16J | ETB20J | ETB22J | ETB24J | ETB29J | ETB30J | ETB34J |
| Max. Working Height(m) | 16 | 20 | 21.9 | 23.7 | 28.7 | 30 | 34 |
| Max. Platform Height(m) | 14 | 18 | 19.9 | 21.7 | 26.7 | 28 | 32 |
| Max. Lift Capacity(kg) | 230 | 480 | 300 | 480 | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 12.6 | 15 | 13.7 | 15.8 | 18.5 | 20.6 | 20.6 |
| Stowed Length(m) | 8.55 | 9.07 | 10.06 | 9.1 | 10.76 | 12.79 | 12.6 |
| Stowed Width(m) | 2.38 | 2.5 | 2.5 | 2.5 | 2.5 | 2.58 | 2.58 |
| Stowed Height(m) | 2.63 | 2.58 | 2.86 | 2.85 | 2.83 | 2.87 | 2.95 |
| Platform Size | 1.83×0.76 | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 |
| Wheel base | 2.4 | 2.38 | 2.5 | 2.5 | 3 | 3 | 3 |
| Drive speed stowed(km/h) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Gradea bility | 45% | 45% | 45% | 45% | 45% | 45% | 45% |
| Engine Power(kw) | ≈36kw@2400rpm~2600rpm | ||||||
| Fuel tank capacity(L) | 100 | 100 | 100 | 100 | 100 | 151 | 151 |
| Weight(kg) | 7500 | 9500 | 9400 | 10400 | 12600 | 16800 | 18500 |
40-63m Diesel Telescopic Boom Lifts
| Model | ETB40J | ETB48J | ETB58J | ETB63J |
| Max. Working Height(m) | 40.4 | 48 | 58 | 63 |
| Max. Platform Height(m) | 38.4 | 46 | 56 | 61 |
| Max. Lift Capacity(kg) | 480 | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 24 | 23.6 | 26 | 26 |
| Platform Size | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 | 2.44×0.91 |
| Wheel base | 3.66 | 3.96 | 5.6 | 5.6 |
| Drive speed stowed(km/h) | 4.4 | 4.4 | 4.4 | 4.2 |
| Gradea bility | 40% | 40% | 40% | 40% |
| Engine Power(kw) | ≈54kw@2400rpm~ 2600rpm | ≈54kw@2400rpm~ 2600rpm | ≈54kw@2600rpm | ≈74kw@2200rpm |
| Fuel tank capacity(L) | 151 | 151 | 200 | 200 |
| Weight(kg) | 21800 | 23110 | 27500 | 28500 |
After Sales Service
Certifications
Company Profile
Please contact me for exact price
