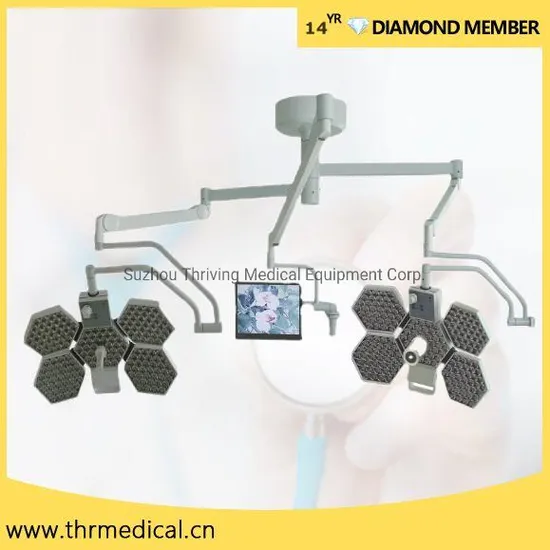

Medical Equipment LED Shadowless Surgical Light with Camera Hospital Operating Lamps

Product Description

• UNMATCHED SHADOW MANAGEMENT OPTIMIZES CONCENTRATION AND SURGICAL TEAM EFFICIENCY
THR-SY02-LED5+5 harnessed the far-reaching potential of the multi-lens matrix to virtually eliminate shadows.
The SY02-LED series'soverlapping fields of light and multiple patterns selectable based on the surgical situation minimize shadows and redirect the full selected intensity to the surgical site.
STERILE CONTROL OPERATIONS
One of the innovative characteristics of SY02-LED series: the sterile control concept enables the surgical team to operate all important functions intuitively, quickly and simply - either on the light heads or via a wall control panel.
On and off-switch
Dimming with integrated Endo mode
Shadow management
OPTIMIZED AIR FLOW DESIGN FOR BETTER HYGIEN With its open design and superior ventilated ceiling tolerance, SY02-LED ensures that perfect operating conditions
are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and
the reduced heat generation ensures a low turbulence displacement stream under the light head.
Long life lighting Long life lighting
LED light source life of up to 30,000 hours or more, with an average life of an ordinary light shadowlesslamp halogen 30 times, and each LED can be individually replaced, to ensure maximum use of economy.
Perfect Cold Light Effect
LED light source does not produce infrared, the temperature rise above surgeon's head is less than 2°C, meanwhile very low temperature rise above the operation field avoids the patients' fluid loss. Thus solve the problem of ussatisfactory wound healing because of higher temperature rise produced by ordinary operating lamp
Color Temperature Adjustment Technology
LED operating lamp is composed of 4 kinds of colored LED lens,the color temperature can be adjusted from 3500K to 5000K to meet surgeon's different color temperature custom.
Color temperature can be adjusted according to blood supply of operation field to reach ideal contrast ratio of human tissue, so that surgeons can distinguish different body tissue optimally.
Furthermore, the surgeon will feel tired during long time operation and night operation. Study shows it can raise surgeon's attention and avoid asthenopia by increasing the color temperature step by step during the operation.
Product Parameters

Type	SY-LED5+5 LED Surgical Operation Celling Light
Illuminance(Lux)	160000Lux;/160000Lux
Colour temperature(k)	4500±200
Colour reduction index(Ra)	96
Illuminance depth(mm)	1150/1150
Total irradiance (W/m2)	510
Size of light field (mm)	200-350
Rated power of bulb(V/W)	3.2V/1W
LED Service life of illuminant	≥50000
Power supply voltage	AC110V-240V(50HZ-60HZ)
Brightness adjustmen	stepless continuous light adjustment
Total power consumption(W)	160
Total LED bulb quantity(pcs)	368
Lowest height of installation(mm)	3100

Camera Data

SNR	≥600TVL
Camera shooting distance	≥46db
Foci	≥0.8~2m
Double ratio	F3.66~91.36mm
Video frequency export	22 double
Vidicon power supply	1.0Vp-p75Ω
Lowest height of installation	12VDC±10%
