ABC/Acbca 1500mm PE Stretch Film Casting Machine Film Production Line

Product Description

Product Description
ABC/ACBCA 1500mm plastic film extruder line for PE stretch film casting machine film production line Product Parameters

Model No.	PYM-65/90/65*1850
Screw Diameter	65/90/65mm
Screw L/D	30:1
Screw Speed	50-150rpm
Layer Structure	ABC/ACBCA
Film material	PE
Film Width	1500mm/3*500mm
Film Thickness	0.01-0.05mm
Electric power supply	Customized, Standard is 380V/50HZ/3P
Total Power	130KW
Capacity	180-300Kg/h
Total weight	13.5T
Dimension	13.5M*3.5M*3.5M

Usage of Stretch Film
USE:This machine is used for the production of plastic LLDPE stretch film, stretch film, and cling film. The products are widely used in food preservation, commodity packaging, and bulk cargo container pallet packaging. It is a better substitute for heat-shrinkable packaging film in transportation.What is the details of our Stretch Film Extruding Machine
1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.
2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.
3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.
4. The winding system can automatically cut the film in different width quickly.
Advantages: Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system

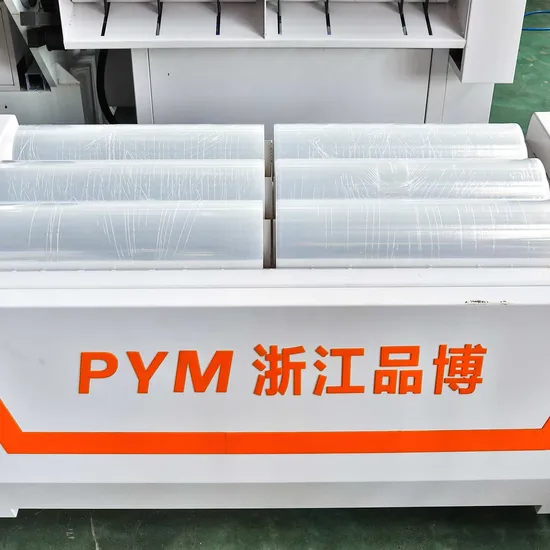

(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min Optional full automatic thickness gauge Excellent stretch film rolls quality for both hand use rolls and stretch use rolls Machine Photos
