Cr2450 Battery 3.0V 1200mAh Battery Cr2450 Battery Coin Battery

Product Description

CR2450 Data sheet: CR2450 button cell 3.0v 1200mah CR2450 battery pack for Tags CR2450 Coin Batteries BP2 pack

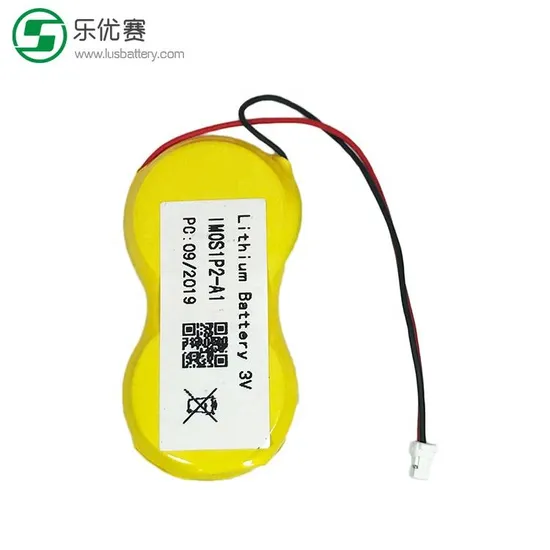

This is a double batteries used in 3V - 1200mAh Electronic Labels
Electronic Device batteries supply power to a wide range of small electronic devices, from calculators, toys and keyless entry systems to electronic books. They are all powered by small but powerful button cells manufactured by LUS Batteries.
CR2450 Battery Features and Specifications CR2450 battery features 24.5 mm (~0.964 inches) diameter and 5.0 mm (~0.197 inches) height and it weighs in 5.7 - 6.3+ grams (0.2 - 0.222+ ounces) range.
CR2450 battery has a negative electrode made of lithium and a positive electrode made of manganese-dioxide; hence their label starts with "CR."
The standard label for lithium 2450 battery with manganese-dioxide positive electrode is CR2450, although other labels are used as well, like 5029LC, DL2450, ECR2450, CR2450N, CR-2450, CR2450EL, CR-2450EL, etc.

ITEM	UNIT	SPECIFICATIONS	CONDITIONS
Nominal voltage	V	3.0	Standard discharge
Nominal capacity	mAh	600	Standard discharge
Instantaneous short-circuit current	mA	≥250	Time≤0.5 second
Off-load voltage	V	≥3.30
Storage temperature		0~35
Standard weight	g	6.2	Unit cell

Series	Button cell lithium battery
Matterial	Limno2 battery
Part number	CR2450-2P
Voltage	3.0 volt
Capacity	1200 mah
Terminals	51021 or shr-2P
Wires length	35mm to 85 mm
Color	Yellow, blue or customized
Label	Welcome customized too
Small order	Acceptapble

Coin cell list

Mode	Voltage(V)	Capacity(mAh)	Dimension(mm)	Weight(g)	Chargeable or Non
CR2032	3	220	20.0*3.2	3	Non
CR2032	3	240	20.0*3.2	3	Non
CR1220	3	35	12.5*2.0	0.8	Non
CR1225	3	50	12.5*2.5	0.9	Non
CR1616	3	50	16.0*1.6	1.1	Non
CR1620	3	70	16.0*2.0	1.3	Non
CR1632	3	120	16.0*3.2	1.8	Non
CR2016	3	83	20.0*1.6	1.7	Non
CR2025	3	150	20.0*2.5	2.5	Non
CR2450	3	600	24.5*5.0	6.2	Non
CR3032	3	550	30.0*3.2	7	Non
ML1220	3	17	12.5*2.0	0.8	Yes

OEM button cell
high-performing lithium coin batteries CR2450 are energy-dense and can deliver 30% more power for your miniature specialty devices, including car keys, remote controls, smart watches, blood glucose monitors, smart home devices, IoT devices, door and window sensors.
With remarkable power-preserving properties and a shelf-life of up to 5 years when properly stored in a cool and dry place, you will never be caught with flat batteries.
Made to perform even under extreme conditions, it operates reliably from -20°C to +60°C.
Safety comes first - these batteries are not only designed to protect your gadgets with leak-proof construction, but also to protect your loved ones with thoughtfully designed child-proof packaging.
