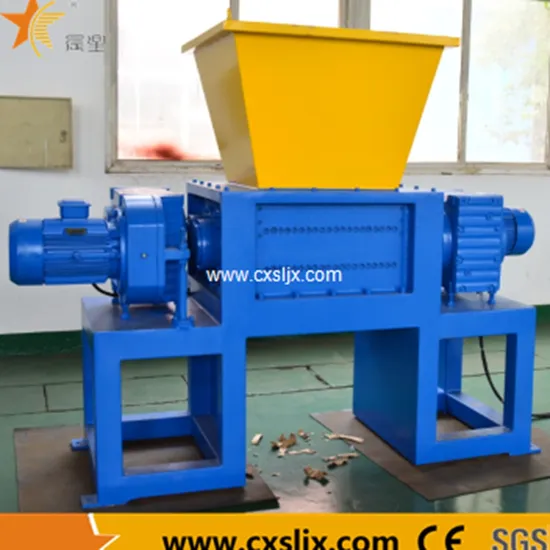

Waste Plastic Recycling Small Double Shaft Shredding Machine
Basic Info.
Model NO.
CX-SSJ2-600
Material Processed
Rubber and Plastic
Plastic Type
Most of Plastic and Rubber
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Item
Double Shaft Shredder
Number of Shaft
Two Shaft
Model
Cx-Ssj2-600
Motor Power
7.5kw + 7.5kw
Paint Color
Blue or Grey (Optional)
Electrical Appliance
Schneider
Control Way
Button or PLC (Optional)
Voltage
380V, 50Hz or Customized
Aftersale Service
Oversea Service or 24 Response by Mail/Call
Transport Package
Wooden Case
Specification
International Standard
Trademark
Chenxing
Origin
Zhanjiagang of Jiangsu
HS Code
84779000
Production Capacity
30, 000sets/Year
Packaging & Delivery
Package Size
400.00cm * 200.00cm * 240.00cm
Package Gross Weight
5000.000kg
Product Description
Product DescriptionSmall double shaft shredding machine, shredder for lab usage
Futures:
1. Thick and heavy knife, crushing efficiency, fixed knife and rotating knife are made of alloy steel casting, it's solid and long service life.
2. Thick iron frame plate can be resistant to high torque, very strong.
3. Easy to be adjusted, low maintenance costs, economic and durable, the device low speed, high torque, low noise and so on.
4. Using microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control.
5. The unit capacity is the theoretical calculation output, prefer to practice, as it's maybe various because of the actual density and shape of broken objects.
It is suitable for shredding large, thick and hard materials, such as automobile shell, solid industrial waste, medical trash, electronic trash, plastic bucket, plastic box, plastic bottle, metal can, metal barrel, woven bag, Refrigerators, circuit boards and cartons and other materials.
Product Parameters
Technical parameters:
| No. | item | description | |
| 1 | model | XD600 | |
| 2 | Suitable material | Carton box, electronic trash, plastic bucket and boar, and metail can, metail barel, woven bag, plastic bottles etc. | |
| 3 | Feeding mouth | 600*480 mm | |
| 5 | Diameter of knife | 285 mm | |
| 6 | speed | 15-23 rpm | |
| 7 | Material of knife | Cr12MoV | |
| 8 | Thickness of knife | 30mm | |
| 9 | Hardness of knife | HRC50-55 (adjust according to customer shredding material) | |
| 10 | Quantity of rotating knife | 20 PCS | |
| 11 | Plate thickness of machine | 30 mm | |
| 12 | Material of steel plate | Q345B | |
| 13 | Material of Frame base | Q235B | |
| 14 | Main motor power | 7.5kw+7.5kw (380V 50Hz 3Ph) | |
| 15 | capacity | 300-500 kg /hr | |
| 16 | Net weight of machine | 2000kg | |
| Electrical details | |||
| 17 | Protection program of motor | TP44 | |
| 18 | Motor | China famous brand Redsun | |
| 19 | Noise class | <75 DB | |
| 20 | Gearbox | China famous brand Redsun | |
| 21 | bearing | China famous brand bearing | |
| 22 | PLC | famous brand Wuxi Xinjie PLC | |
| 23 | Other electrical appliance | Schneider | |
