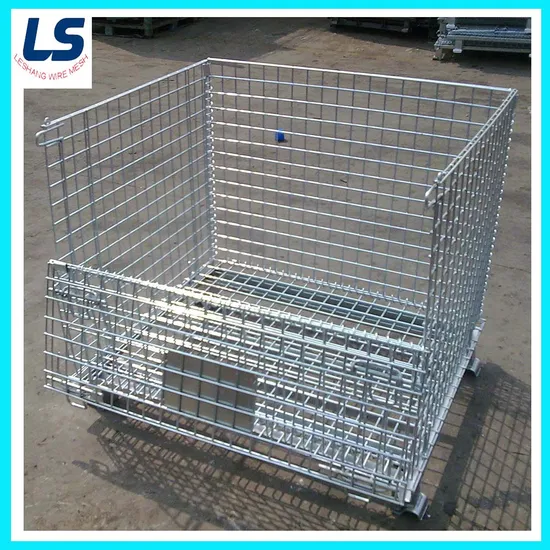

Collapsible Wire Mesh Cage Container for Storage
Basic Info.
Model NO.
LS-WMC389
Load Capacity
600-1200kg
Folded
Folded
Mesh Spacing
50X50mm and 50X100mm
Wire Diameter
4.8mm to 6.4mm
Feet Height
100 or 120mm
Scale
Medium Duty
Wire diameter
5.8 mm and 6.2mm
Welding
Full Welding
Goods Name
Wire Mesh Container
Feature
Foldable and Stackable
Processing
Welded Wire Mesh Further Processing
Foot Design
with Casters or U Shape Foot
Transport Package
Pallets
Specification
according to clients requirement
Trademark
LS
Origin
Anping Hebei, China
HS Code
87168000
Production Capacity
5000 Pieces/ Day
Product Description
Wire container is also known as storage cage, butterfly cage and warehouse cargo cage. It is a kind of metal cage with network structure used to store goods. TAWINER Wire Container Company's products have the features of fixed capacity for storage, neat stack, intuitive storage, and convenient for stock inventory.the bottom is reinforced by U-shaped steel beam, high strength, high load capacity, can be stacked four layers, achieving a three- dimensional storage. Wire container with casters can facilitate the turnaround in the workshop
Our wire containers are widely used in warehouse, workshop, logistics distribution center, and supermarket.
Additional accessories:
Casters.
Caster brakes.
Full drop gate.
Swing gate.
Fork pockets.
Fork stirrups.
Lid.
Divider.
Runners.
Label card.
Surface treatment: electro-galvanized (zinc coating thickness: 6 - 8μm), hot-dip galvanized (zinc coating thickness: 35 - 90μm), PVC coated, painting colors you chose.
Stack-ability: 3 or 4.
Standard: ISO9001.
Packing: in bulk bundled by steel strips.
| Item No. | External dimension (L × W × H) (mm) | Internal dimension (L × W × H) (mm) | Wire diameter (mm) | Mesh gauge (mm) | Loading capacity (kg) | Self-weight (kg) |
| A-1 | 800 × 600 × 640 | 750 × 550 × 500 | 4.8 | 50 × 50 | 400 | 20 |
| 5.3 | 600 | 23 | ||||
| 5.6 | 700 | 27 | ||||
| 5.8 | 800 | 29 | ||||
| A-2 | 800 × 600 × 640 | 750 × 550 × 500 | 5.8 | 50 × 100 | 600 | 25 |
| A-3 | 800 × 600 × 640 | 750 × 550 × 500 | 6.3 | 50 × 50 | 1000 | 32 |
| A-4 | 1000 × 600 × 640 | 950 × 550 × 500 | 6.0 | 1000 | 37 | |
| A-5 | 1000 × 800 × 840 | 950 × 750 × 700 | 6.0 | 1200 | 49 | |
| A-6 | 1200 × 800 × 840 | 1150 × 750 × 700 | 6.0 | 1200 | 55 | |
| A-7 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 6.0 | 1500 | 65 | |
| B-1 | 1000 × 800 × 840 | 950 × 750 × 700 | 4.8 | 600 | 30 | |
| 5.3 | 800 | 35 | ||||
| 5.6 | 1000 | 42 | ||||
| 5.8 | 1200 | 44 | ||||
| B-2 | 1000 × 800 × 840 | 950 × 750 × 700 | 5.8 | 50 × 100 | 1000 | 39 |
| B-3 | 800 × 600 × 640 | 750 × 550 × 500 | 6.4 | 800 | 29 | |
| 1000 × 800 × 840 | 950 × 750 × 700 | 6.3 | 50 × 50 | 1500 | 51 | |
| B-5 | 1000 × 800 × 840 | 950 × 750 × 700 | 6.4 | 1500 | 55 | |
| 1000 × 800 × 490 | 1000 × 800 × 350 | 6.4 | 1000 | 40 | ||
| B-7 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 6.4 | 2000 | 71 | |
| B-9 | 1200 × 800 × 840 | 1150 × 750 × 700 | 6.0 | 1500 | 55 | |
| C-1 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 5.6 | 1300 | 53 | |
| 5.8 | 1500 | 60 | ||||
| C-2 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 5.6 | 50 × 100 | 800 | 48 |
| 5.8 | 1000 | 53 | ||||
| 800 × 500 × 540 | 750 × 450 × 400 | 4.8 | 25 × 50 | 500 | 25 | |
| C-3 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 6.3 | 50 × 50 | 2000 | 68 |
| C-4 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 5.6 | 50 × 100 | 800 | 48 |
| C-5 | 1000 × 800 × 840 | 950 × 750 × 700 | 4.8 | 50 × 50 | 500 | 37 |
| C-7 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 4.8 | 500 | 44 | |
| D-7 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 6.0 | 100 × 100 | 500 | 50 |
| S-5 | 1000 × 800 × 840 | 950 × 750 × 700 | 6.4 | 50 × 100 | 1000 | 47 |
| S-6 | 1200 × 800 × 840 | 1150 × 750 × 700 | 6.4 | 1000 | 56 | |
| S-7 | 1200 × 1000 × 890 | 1150 × 950 × 750 | 6.4 | 1200 | 62 |
