DN100-300 Ball Valve From China OEM Manufacturer
Basic Info.
Model NO.
HQ41X
Material
Cast Iron
Connection Form
Flange
Structure
Tubular
Pressure
Ordinary Temperature
Function
Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence
Sealing Form
Bellows Globe Valve
Flow Direction
Bidirectional
Standard
GB
Application
Water Industrial Usage
Name
DN100-300 Ball Valve
Useage
Water Flow Control, Non Return Flow
Disc
Carbon Steel Ball Coated EPDM Rubber
Valve Body
Ggg50
Valve Bonnet
Ggg50
Valve Bolts
Carbon Steel with Zinc Coatting
Sealing Ring
EPDM or NBR Ruber Seal
Ball
Carbon Steel Ball+ EPDM
Size
DN50-DN300
Transport Package
Plywood Wooden Box
Specification
DN100
Trademark
BTVAL
Origin
Hebei China
HS Code
848180
Production Capacity
10000 Pieces/Year
Product Description

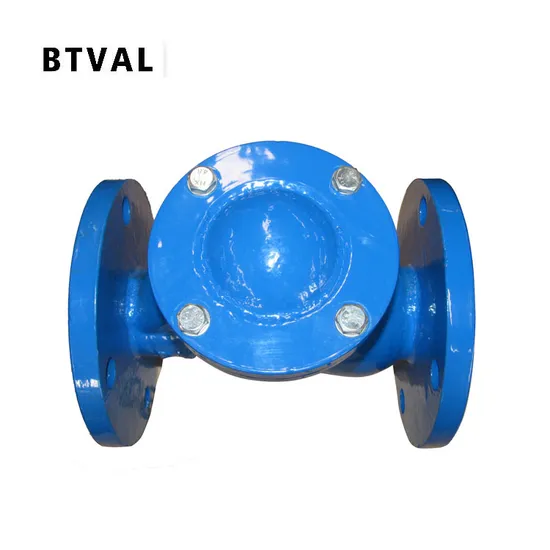

4 Inches DN 100 Non-return ball valve| Ball rolling check valve adopts rubber coated ball as valve disc. Under the action of medium, it can roll up and down on the integral slide of the valve body, so as to open or close the valve. It has good sealing performance, silencing closing and no water hammer. The valve body adopts full flow channel, with large flow and small resistance |
| Valve Body&Bonnet | GGG40/50 |
| Bolts: | Stainless steel |
| DISC | Carbon Steel Ball+EPDM rubber ball |
| DN | 50mm=2in,max DN300mm |
and specs.
Packing:Standard Wood Carton box
FAQ:
| Q1: Are you trading company or manufacturer ? A1: We are factory. Q2:Can i have my own Logo on the product? A2: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost. Q3:Can you produce the products according to my own drawings? A3:Yes,we can produce the products according to your drawings that will be most satisfy you. Q4:Can I request to change the form of packaging and transportation? A4:Yes,We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads. Q5: Can i request to advance the shipment? A5: It should be depends on whether there is sufficient inventory in our warehouse. Q6: What is your terms of payment ? A6: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. |
