PP PE PVC Thick Plastic Sheets/Board/Panel Extrusion Machine Line

Product Description

PP PE HDPE ABS Thick sheets production line extruder Plate Professional Plant Board making machine 3-30mm.
PP/PE/ PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH plastic Sheet Production Line Extruder Plate Equipment Manufacturing Line (single layer or Multi-layer sheet line).
PP Micro foam sheet Extruding Machine stationery folder sheet extrusion line machinery.
PP sheet production line
PE sheet extrusion line
Plastic sheet machine
HDPE multi-layer sheet making machine
PP one-layer sheet extrusion line
PP PE ABS HIPS PMMA plastic sheet extrusion machine
HIPS GPPS Sheet extrusion line
PMMA PC PET Sheet extrusion line

sheet / board extrusion line
single and multi-layer sheet extrusion line
Hollow profile board extrusion line
1. Sheet Applacations:
Product sheet widely used in optical, home appliances, construction, decoration, furniture, advertising, handicrafts and other industrial and civilian industries. Multi-layer co-extruding sheet&plate line can produce various material compound sheet &plate , PP/EVA/EVOH/PP; PP/PE/PS; PMMA/ABS and so on. Multi-layer co-extruding sheet&plate is widely used in food packing, drink containers, jelly, cosmetic and other home using products.
2. Sheet Extrusion Line:

PP/PE/ PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH Sheets Line Consists: PP PE HDPE ABS PVC Thick sheets production line Consists:
1.	Single Screw Extruder or Double screw extruder	1 set or 2 sets or 3 sets
2.	Duplex hydraulic screen changer for Single Screw Extruder line	1 set
3.	Extrusion Die Head T-die Head	1 set
4	Three Roller Calendar	1 set
5	Cooling Frame	1 set
6	Edge Trimming Unit	1 set
7	Edge Material Crushing Unit	1 set
8	Double Roller Hauling off Machine	1 set
9	Cutting off Machine or Double Station Winding Machine	1 set

3. Machie pictures:
Extruder
Appropriate single-screw extruder (exhaust or not) or Parallel twin screws extruder, should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.
Screen changer:The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage.

Extrusion T-die head mould:
Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of plates (sheets).

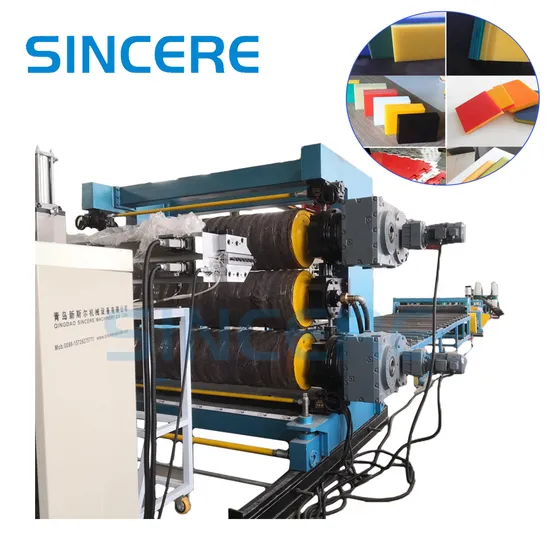

Three-roller calendaring machine:
Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets).
Bracket of cooling roller:Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.
Edge side cutting device online, so the side of sheet will be smooth and uniform, the cutting wastage can be reused for production
Cutting side online crushing and recycling device, it can make the cutting wastage into small flakes.
Haul-Off Device.
Landscape orientation cutting machine: It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

4. Extrusion Line Characteristic:
Adopting the oversea advanced technology to make the optimization design with big screw L/D ratio and high production capacity. To change the net by full-auto hydraulic changing net, easy and fast. The upper and lower roll wheel of 3-roll calendar are adopted the hydraulic moving, the pressure can be adjusted, suitable for the different materials. Adopting double station center winding for the winding device, matched the magnetic powder tension control.
5. Technical Parameters.

Screw diameter	65-170mm
L|D	35:1,38:1
Main engine power	30-350kw
Thickness of sheet	1-8mm
Thickness of sheet	400-2000mm
Толщины листа	0.2-2mm, 3-30mm
Productivity	150-1000kg/h
Installed capacity	200-420kw
Material	Raw materials or recycled materials PP/PE/PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH
Sheet Type	Single layer, double-layer or multi-layer, micro Foaming or not foaming, colorful or Transparent sheet.
