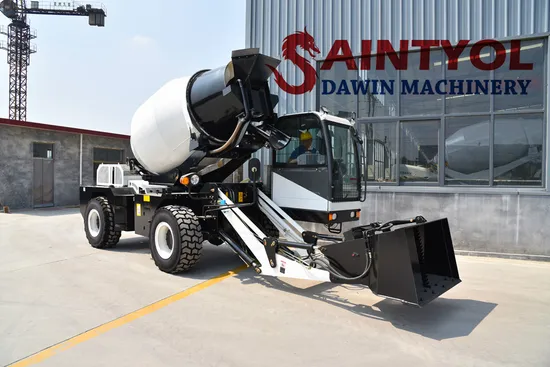

2.0m3 Small Shovel Concrete Self Loader Mixer Truck on Sale

Product Description

concrete self loader mixing truck on sale
Self loading rough terrain concrete mixers are a kind of practical and flexible concrete mixers with truck. It is so practical and useful in the construction site that the self loading concrete mixer is widely spread both in the market and in the construction scene. Self loading concrete mixers made in Saintyol DAWIN machinery are in leading position in the market and have received a good reputation all over the world.
Main Components of Self Loading Concrete Mixer Truck:
There are mainly six parts in the concrete self loader truck: concrete mixing drum, shovel, chassis, wheels, control room, engine and water supply system. Concrete mixing drum mainly plays two roles: one is storing the materials during the transportation; the other is to mix the raw materials. What's more, the mixing drum above the concrete chassis can rotate continuously in full angle to meet different building site. Shovel is an important component to pour the raw materials into the concrete mixing drum. Chassis can prop up the concrete mixing drum and the drum can rotate above it. Wheels are a special design according to the rough terrains. The proper wheels can go through the uneven surface of a road successfully. Control room is a place where the worker can operate the machine. The control room is equipped with the lucid glasses so that the worker can avoid the hitting of wind or rain. Our engine adopts world famous technology which has long service time and stable performance. Water supply system is also a prominent part to the whole machine. The water can be poured into the mixing drum automatically. All in all, one person and one machine can finish the process from the raw materials to the stirred concrete.
Characteristics and Advantages of Self Loading Mixer Machine
There are different sizes we can supply in our company. According to the capacityofthe mixing drum, they can be divided into 0.35m3, 1m3, 1.5m3, 2.5m3, and 3.5m3. It is a machine that can be used by one worker. It will highly reduce the cost on the labor. The self loading concrete truck mixer has a stable performance and long service time. The materialswe use are excellent steel. The engine we use has high quality and technology. We design the machine with the idea of fashion and practice so that he machine has fashionable appearance and practical function. The self loading concrete mixer truck has good quality withcompetitive price. If you buy a machine in a bad quality, some troubles may happen when you use it. Then time and money will be wasted to repair it. So pay more attention to the quality of self loading concrete mixer truck when you are choosing one. Saintyol DAWIN self loading concrete mixerhas realized Fully automatic loading and discharging. It will largely improve the product capacity.
Wide Applications of Self Loading Concrete Mixer for Sale
Self loading cement mixer is a kind of machine that is suitable for many places not only in the city but also in the countryside. Self loading cement mixer can be used in the construction site very conveniently. With the development of modern society, the construction in the countryside appears like the boom in spring, so the construction machine is necessary in the building. In the countryside, residents' dwelling and the roads are built. In the city, municipal projects are also very common in every country. Other than these construction sites, the maintenance of the infrastructure is also necessary. All in all, the self loading concrete mixer has a big market as long as people live in the ground.

Name	Item	Specification
	Net	6200 KG
	Transmission	4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.4m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-30KM/H
		Low		0-9KM/H
	Mini turning radius	4.5M/R
Engine	Type	Yunnei 4102
	Rated Power/RPM	76KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	2.0M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Tyre model	16/70-20 construction tyre
Electronic parts	Waterproof circuit
Hydraulic oil	France Total brand

Name	Item	Specification
	Net	8000 KG
	Transmission	4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.7m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-30KM/H
		Low		0-9KM/H
	Mini turning radius	3.5M/R
Engine	Type	Yuchai	4108
	Rated Power/RPM	85KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	3.5M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
Loader control	Hydraulic 4 way stick
Tyre model	16/70-20 construction tyre
Electronic parts	Waterproof circuit
Hydraulic oil	France Total brand
Water tank capacity	297L
Hydraulic oil tank capacity	150L
Diesel oil tank capacity	190L
Overall size	7941x2360x2500mm
Wheelbase	3000mm
Tread	1700mm
Mixing motor	Eaton brand with 195L/M
Axle Capacity	15tons
Hydraulic	France Total brand for tropical area

HY4.0	Item	Specification
	Net	9000 KG
	Transmission	Full Hydraulic
		4WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880
	Wheelbase	2250mm
	Loader bucket	capacity	0.6m3
		Control	Hydraulic
	Tilt angle	30%
	Speed	High	0-25KM/H
		Low	0-9KM/H
	Mini turning radius	6.5M/R
	Tyre model	16/70-20
Engine	Type	Cummins
	Rated Power/RPM	93KW/2200RPM/125HP 2200RPM (4BTA3.9-C125)
	Max.Torque/RPM	475N.M/1500RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Drum capacity	6.0M3
	Mixing Capacity	4.0M3
	Bank Angle	16 °
	Rotation Angle	17-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:176cm
		Short:40cm
Loader	Weighing model	computer control
		Concrete Standard		C15.C20.C25 C30
	Accuracy	concrete		≤±2%/time
		Relative Error		≤±3%/time
		water		≤±1%/time
		Additive		≤±1%/time
		Admixture		≤±2%/time
Control	One hydraulic 4 way stick
Overall size	7500*2700*3380(4760)

Self Loading Transit Mixer Quality and Price
Our self loading concrete mixer truck has a good quality. First of all, we adopt the engine from famous brands in high technology and quality such as Pekins and Cummins. Secondly, the control room we use is the design in glasses so that workers can operate the machine more conveniently. Then, self loading transit mixer, as a kind of machine, can work normally in the rough terrain; the wheels are manufactured in a special way. There are also some advantages in the quality, if you are interested in our products, you can contact our company through the email or the other ways.
Our self loading transit mixer truck has the most competitive price. On the one hand, because of the good quality, the price of our concrete mixer truck is the best, not the lowest. Compared with the lowest price, we supply the products with high quality and more perfect service. Our products in the higher quality will help you to know the price is so cheap that the successful working of the machine will take more profit to customers. As a result, you can get the ideal self loading mixer in a proper price. If you are interested in our products, please feel ease to keep in touch with us, and we give you the best solutions according to your requirements.
The Self Loading Concrete Truck Mixer for Sale - Saintyol DAWIN Machinery
We have professional business team, e-commerce team and overseas team. Nowadays, we have set three branches and three warehouses overseas. Our customers are in over eighty countries or regions all over the world such as USA, India, France, Egypt, New Zealand and so on.
The certificates we have gained are certificate of ISO, Qingdao famous brand and CE certificate. We also have been a verified supplier by BV and Made-in-China. In a word, we have received many reputations from home and abroad; and we are proud of the great achievements that our company has reached. Especially in the recent years, we have developed rapidly. In the process of development, we always put customers first. We always make friends with our customers and support the best service and products to the customers.
SAINTYOL DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
