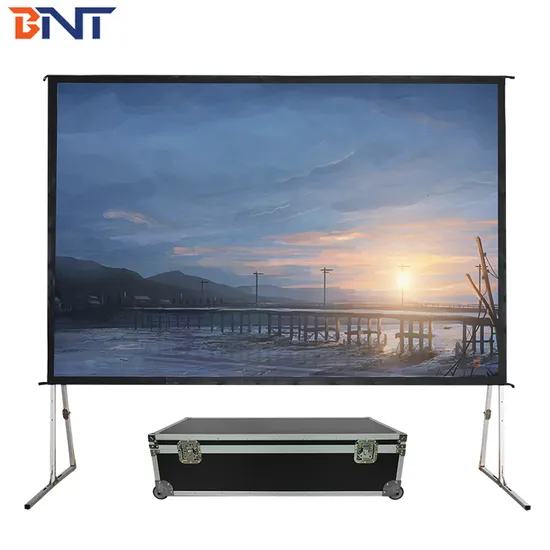

Bnt 180 Inch Matte White Fabric Fast Fold Projector Screen with Square Aluminum Metal Folding Frame

Product Description

Fast fold screen is good design of the projection screen, easy to assemble and carry. Can protect well with an impact resistant carrying suitcase. Not need to fixed on the wall and ceiling, suitable for different needs, such as: exhibitions, banquets, concerts, large-scale business activities, etc..

Feature:
Frame:
1. The fast assembled frame is made of high quality aluminum alloy material, can bear over 50~100kgs weight, not easy to bend.
2. The aluminum frame is designed to be light weight and easily operated.
3. The aluminum frame is connect each other, easy to carry together.
4. Movable joint design, make the frame more flexibility and easy to carry, assemble and disassemble.
5. The screen fabric is attached to the rectangular frame and held in place by several press studs, which ensure an evenly stretched and perfectly flat surface.
6. The screen can be assembled in 3 minutes and with out the use of tools. When not in use the screen is stored in an impact resistant carrying case.
7. The frame adopts a square tube type design, so that the frame can bear high gravity and is not easy to collapse.
8. The joint part of frame is use of the spring fixed switch design, can make the frame more secure.
9. The frame using the streamline design, make the appearance more advanced and beautiful.
10. The floor support using the extension fixed foot design, make the screen more stable not easy to topple over.
11. Lightweight and can be folded, each part of the aluminum frame and frame without disassembly, easy to carry and transport, and can provide very good stability.
12. The frame and the bracket part, through the auxiliary crank shaft knob is fixed on the frame, the loading and unloading is convenient, stable smooth.
13. The frame fixed to the floor support with 8~16 pieces large diameter hand screws.
Fabric:
1. With high quality fabric, the screen fabric is using the imported front and rear projection fabric.
2. The fabric not easy to duty and scratches.
3. Easy to cleaning the screen fabric, using clean water and soft cloth to clean, not need to use chemical cleaning agents or alcohol.
4. The front fabric of projection screen is made of the selection of pearl white, flexible gray screen fabric, delicate texture, texture, smooth, soft, smooth, non deformation, with good compress strength.
5. The rear fabric of projection screen is made of the Polyethylene soft screen fabric, the light can be highly transparent, soft and smooth texture, no deformation, has good tensile strength.
6. The front and rear projection fabric has a viewing angle of 100°and a gain of 1.0.
7. Both type of fabric are durable and can be folded many times with out damage or disortion.
8. The fabric is made within held in place by several press studs, which can fixed on to the frame and ensure an evenly stretched and perfectly flat surface.
Packing:
1. The rapid folding screen provides a portable mobile box with wheels, impact resistance and easy transportation.
2. The screen fabric is packing with two high quality soft back bags.
3. Each joint of frame is covered with white foam to prevent damage.
4. With high tenacity and elastic belt to fixed the screen fabric and frame in inner case.
5. Inner case is made with 10 mm thickness impact foam board to protect the screen during carry.
6. The outer case is made with a protective metal to protect each corner and edge.
7. There are two lock design in the case to ensure the screen safety.

Specification:

Type	Projection projection screen
Function	Fast fold screen
Items	BETFFS4-180
Application	Large church or exhibition hall or outdoor
Size100	180 inch
Ratio	4 : 3
Projection size (mm)	3658*2743
Frame material	Aluminum alloy
Front screen material	Pearl white soft screen fabric
Rear screen material	Polyethylene soft screen fabric
Screen projection way	Front and rear projection

Projection Way:
Correct use of the projection screen will ensure better results.
For the front projection assemble and view the screen as indicated in Fig.1.
For the rear projection assemble and view the screen as indicated in Fig.2.
Other size selection :

Size(inch)	Ratio	W(inch)	H(inch)	W(mm)	H(mm)	B(mm)	Frame size(mm)
72	4:3	57.6	43.2	1463	1097	75	32 * 32
84	4:3	67.2	50.4	1707	1280	75	32 * 32
100	4:3	80	60	2032	1524	75	32 * 32
120	4:3	96	72	2438	1829	75	32 * 32
150	4:3	120	90	3048	2286	75	32 * 32
180	4:3	144	108	3658	2743	75	32 * 32
200	4:3	160	120	4064	3048	75	32 * 32
250	4:3	200	150	5080	3810	100	36 * 64
300	4:3	240	180	6096	4572	100	36 * 65
350	4:3	280	210	7112	5534	100	36 * 66
72	16:9	62.7	35.3	1593	896	75	32 * 32
84	16:9	73.2	41.2	1858	1045	75	32 * 32
100	16:9	87.1	49	2212	1245	75	32 * 32
120	16:9	104.5	58.8	2655	1494	75	32 * 32
150	16:9	130.7	73.5	3319	1867	75	32 * 32
180	16:9	156.8	88.2	3982	2240	75	32 * 32
200	16:9	174.2	98	4425	2489	75	32 * 32
250	16:9	217.8	122.5	5531	3112	100	36 * 64
300	16:9	261.3	147	6637	3734	100	36 * 64

All the size of fast fold screen as indicated in Fig. 21 and Fig. 22.
Selling piont:
1. 10 years international trade experience,professional tearm work, provide the best service and the best quality.
2. Can supply with different size as customer request from 72~400 inch.
3. OEM with logo on product and packing is available.
4. Any of inquiries will be response within 48 hours, any after-sales problem will be response within 24 hours.

Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample is available.
