Stable Superfine Sawdust Crushing Wood Machine Machine/Wood Pulverizer

Product Description

Product Description
Wood crusher includes the hammer crusher and disc wood crusher
The Hammer crusher is fit for wood sawdust diameters less than 3cm. disc wood crusher is fit for wood diameters of 3-20cm. No matter hammer crusher or a wood crusher, it can be an electric type or a diesel type.
The productivity can vary according to the raw material type and moisture content, as well as the size of the holes in the sieve.

working principle
It is that the motor drives the pulley,and the pulley drives the blade to run,the blade will cut the wood into the wood chips,then the hammer hammers the wood chips into sawdust,finally, it is filtered through a screen. By customizing the processing flow and screen size, we can get wood sawdust in different sizes. Application
Wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, bamboo etc.
Final Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory.
Usage of Sawdust:
1.The base raw material for cultivated edible fungus/Edible mushroom cultivation;
2.Production of biomass fuel pellet/wood charcoal:
3.For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas
4.Medium,small particleboard and fibreboard production:
5.Particleboard, plywood, high density board, sawdust board, MDF, etc.
6.Mosquito-repellent incense making;
7.Paper making raw material.
Product Parameters

The Hammer crusher is fit for wood diameters less than 3-5cm.
Model	FM-SC420	FM-SC500A	FM-SC500B	FM-SC500C
Capacity(kg/h)	300-500	600-800	900-1000	1500-2000
Power(kW)	7.5	11	22	30
Machine Size(cm)	110*55*85	125*65*100	140*78*125	160*85*135
Weight(kg)	350	450	750	900

Disc wood crusher is fit for wood diameters 3-27cm
Model	FM-DC420	FM-DC500	FM-DC600	FM-DC1000
Capacity(kg/h)	300-1500	500-2000	800-3000	1500-5000
Power(kW)	15	22	30	55
Cut Diameter(mm)	420	500	600	1000
Input Size	17*15cm	20*17cm	22*19cm	27*25

Product Details

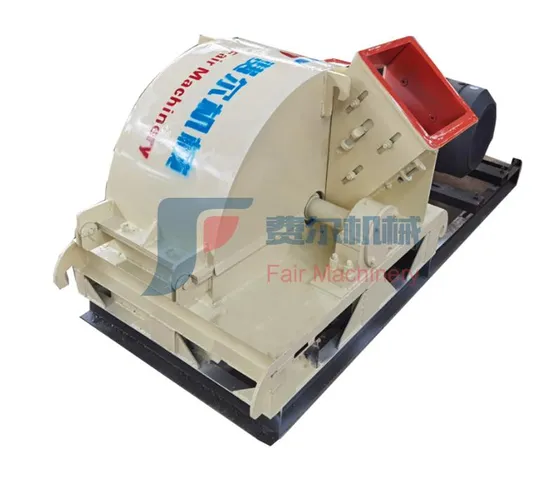

Product Real Shot
Our Advantages
Wood crusher machine Feature:
1. Sawdust crusher machine can drive by Motor, Diesel, and Gasoline engines.
2. Offering 220V and 380V, Accept Customized Voltage.
3. Simple and Automatic Operation.
4. Easy Maintainance.
5. It can be combined wheels, with no limitation on the places.
6. It realizes the perfect combination of chipping and crushing.
7. Sawdust crusher machine can be equipped with an airlock, or cyclone, Offering customized design.
8.The particle size of the finished product after crushing is finer and more uniform, 0.8-12mm can be freely selected .(3mm screen mesh can reach the fineness of ordinary crushing 2mm screen mesh); the crushing fineness can be adjusted at will.
9.High-quality bearings are selected, and the operating temperature rise is low.
10.The screen adopts a staggered row of holes, and the discharge is smooth.
11.Quick-opening door opening mechanism and elastic sieve pressing mechanism, easy to operate and maintain.
Our advantage:
1.10 years of manufacturing experience,professional and delivery on time.
2.Outstanding quality and design,specified expert on inspection of product and design chart.
3.We can offer turnkey service and give our best recommendation to customer,process line design, equipment installation and operate training.Engineer is available to offer instruction on line or go overseas installation and repair.
4.One year warranty of all machines and lifetime supply of parts.
Our Service
Pre-sale services
1.Provide the free consultation of the machine.
2.Provide the standard device and the flow chart
3.According to the clients' special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory or the domestic clients' factory.
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula.
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging

Packaging & Shipping
We have a long-term working shipping forwarder. We can do our best to send the machine to your port safely and sound.
If your need it, we can help you do custom clearance.
Packaging Details:
Big-size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Company Profile


FAQ
1. How about the quality of your product?
-- Our products are manufactured strictly according to national and international standards.
-- We have ISO certification.
-- We take a test on every product before delivery.
2. How about the price of this product?
-- We do quotations as soon as possible for any customer.
-- Discount can be given according to quantity.
3. If you can be custom-made?
-- We can make products according to customers' requirements.
4. How to visit your factory?
-- Taking the plane to Zhengzhou International Airport.
-- Taking the high-speed rail to Zhengzhou Station.
5. What About the Wood Crusher Warranty?
If the parts of the wood chipper fail or are damaged (except the worn parts due to quality problems) within one year from the factory, our company will provide these parts free of charge.
Customer choose service:
1. Manual feeding and automatic feeding
2. With discharging conveyor and without.
3. Fixed type and mobile type wood crusher machine (Add wheel and tractor).
4. All these services can be chosen at the same time.
