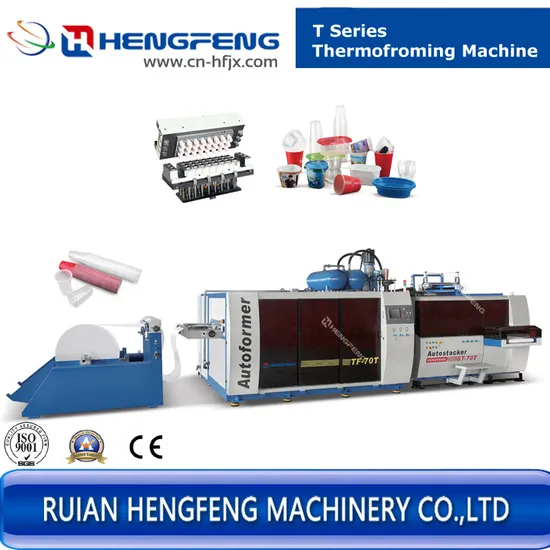

Plastic Cup Thermoforming Machine for Water Cup/Ice Cream/Coffee Cup (HFTF-70T)

Product Description

Ice Cream Cup Thermoforming Machine (HFTF-70T)
Application

HFTF-70T thermoforming machine can produce ice cream cup in a high speed.The materials can be PP,PS,PET,PVC,PLA,etc.If necessary,HFTF-70T can combine with extrusion machine to make up a whole line,produce from plastic granule to cups directly.And the in line thermoforming machine can form a bacteria-free environment,it will be better for food filling.

Feature
-Cutting in mould
-Rapid mold changing device and easy maintenance
-Stability and high speed movement is guaranteed by cam driving system
-Screen digital setting and storage of machine parameter
-Forming with 7bar air pressure,cutting in mould
-More sanitary and labor-saving with automatic counting and stacking
-Plug and feeding driven by Servo motor
-For making plastic cup and suitable material such as PP,PS,PVC,PET,PLA,etc.

Main Specification

1- Max. Forming Area	685×320mm
2- Max. Forming Depth	≤180mm
3- Clamping Force	400KN
4- Sheet Width Range	550-720mm
5- Sheet Thickness	0.35-2.2mm
6- Max. Rolling Diameter	Φ1500mm
7- Air Pressure	0.7-0.85mpa
8- Water Consumption	50L/min
9- Air Consumption	3000L/min
10- Max.Dryer Speed	42 Cycles/min
11- Power (Three Phase Four Wire)	3×380V+N+PE.50HZ
12- Heating Power	130KW
13- Main Motor power	11kw
14- Feeding Motor Power	4.4kw
15- Stretching Servo Motor Power	11kw
16- Machine Weight	12500kg
17- Dimension	12500×3650×3550mm
