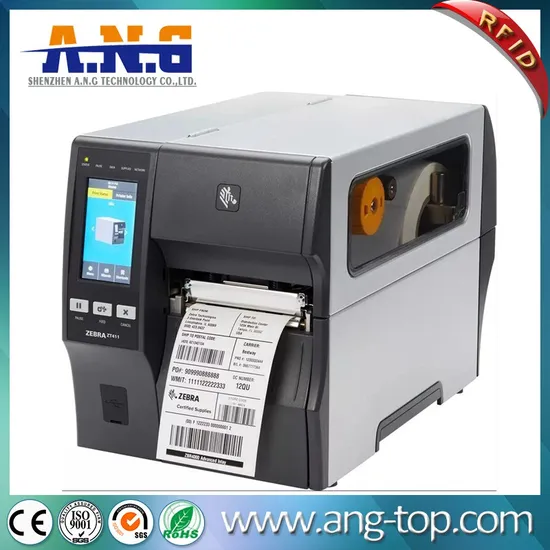

Zt411 Passive RFID Printer Desktop Industrial UHF Label Printer Thermal Barcode Printer

Product Description

ZT411 Passive RFID Printer Desktop Industrial UHF Label Printer Thermal Barcode Printer
RFID
• Integrated RFID system is user-upgradable in the field
• Optional field-upgradeable on-metal version available (ZT411 only)
• Prints and encodes tags with a minimum pitch of 0.6 in./16 mm
• Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63
and RAIN RFID protocols
• Compliant with Global RFID radio to support multinational deployments
• Automatically eliminate complex RFID placement guidelines with adaptive
encoding technology
• Variable inlay placement supports a range of inlay positions for maximum
media flexibility
• Track performance with RFID job-monitoring tools
• Support for industry standard multi-vendor chip-based serialization (MCS)
• Supports block permalocking of user memory compatible with ATA Spec 2000
• Integrated ThingMagic® RFID reader/encoder
Standard Features
• Print Methods: Thermal transfer and direct thermal printing
• Construction: Metal frame and bi-fold metal media cover with enlarged clear
viewing window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet,
Bluetooth 4.1, Dual USB Host
• 4.3-inch color touch display with intuitive menu for quick operation and
settings management
• Bi-colored status LEDs for quick printer status
• ENERGY STAR® qualified
Physical Characteristics
Dimensions (closed)
ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
ZT421: 19.5 in. L x 13.25 in. W x 12.75 H
495 mm L x 336 mm W x 324 mm H
Weight
ZT411: 36 lbs./16.33 kg
ZT421: 40 lbs./18.14 kg
Resolution
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT411 only)
Memory
256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print Width
ZT411: 4.09 in./104 mm
ZT421: 6.6 in./168 mm
Maximum Print Speed
ZT411: 14 ips/356 mm per second
ZT421: 12 ips/305 mm per second
Media Sensors
Adjustable dual media sensors: transmissive and
reflective
Print Length
ZT411
• 203 dpi: 157 in./3988 mm
• 300 dpi: 73 in./1854 mm
• 600 dpi: 39 in./991 mm
ZT421
• 203 dpi: 102 in./2591 mm
• 300 dpi: 45 in./1143 mm
