Lw Model 2 Phase Decanter Centrifuge with High Performance

Product Description

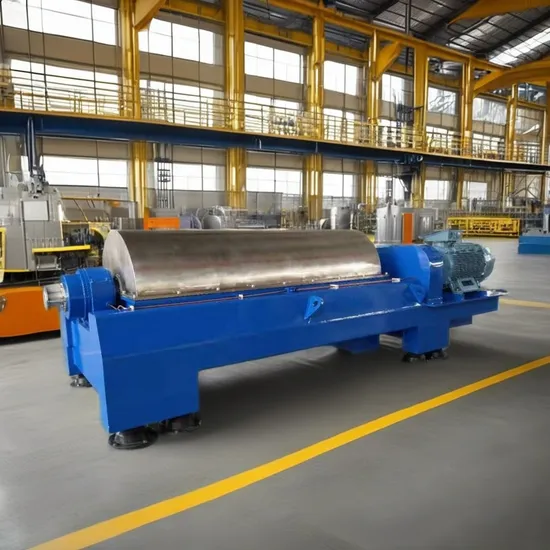

Horizontal Beverage Centrifuge Product Name: LW400 Decanter centrifuge
With continuous feeding and continuous discharging.The settling speed is determined by particle size, particle shape, density difference between solids and liquids as well as their viscosity.
This series of decanter centrifuge is widely applied for the solid dewatering, the liquid clarification and separation, liquid-liquid-solid separating and size-grading of various suspensions, and it is required that the particle size is 0.005 ~15mm, the consistency is 1 ~40%, and the working temperature should be not more than 100°C. Product Description of Lw Model 2 Phase Decanter Centrifuge with High Performance
It is one of the models with more users and mature technology. It has three models with different length diameter ratio and height. It has the characteristics of medium shape, high speed of 3000-3200r/min and medium processing capacity.

The user can reasonably select the working parameters of the centrifuge according to the physical properties of the separated material (suspension), separation requirements, treatment capacity, process requirements and other factors, so as to obtain satisfactory separation effect and economic benefits. Color and material can be customized; It is widely used in new energy, chemical industry, petroleum, light industry, pharmaceutical, food and other industries.

Introduce of Lw Model 2 Phase Decanter Centrifuge with High Performance
LW400 Decanter centrifuge, It is mainly used for dehydration, concentration, clarification and solid particle separation of materials with poor solid-liquid density. By changing technical parameters, it can be used to separate materials with different requirements.

It has the obvious advantages of strong adaptability to material separation, large processing capacity, continuous operation, simple operation, low operation cost, small floor area, etc. It is widely used in many fields where materials with poor density need to be separated, such as petroleum, chemical industry, food, paper making, brewing, etc. It is especially suitable for solid-liquid separation of suspensions that are difficult to regenerate filter cloth and have a wide range of concentration and particle size changes.

Advantage of Lw Model 2 Phase Decanter Centrifuge with High Performance This liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration. Dual eletric motor control enables stepless speed adjustment on bowl and spiral components. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Moreover, main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual-phase steel, whereby offering exceptional speed limits and separation ratio. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids. Multipe protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion-proof protection, motr overload and over heat protection.


Main Choices of Lw Model 2 Phase Decanter Centrifuge with High Performance
According to user's requirement, the product contact parts can be made of austenite stainless (321, 316L….), Haynes alloy, titanic alloy or other anti-erosion materials.

Technical Parameter of Lw Model 2 Phase Decanter Centrifuge with High Performance

Model	Diameter	Length	Max Speed (R/Min)	L/D Ratio	G-Force (G)	Capacity	Main Motor Power	Weight	Dimension (L*W*H)
	(Mm)	(Mm)				(M3/H)	(Kw)	(Kg)	(Mm)
LW400*800	400	860	3200	2.2	2294	2-8	15	1600	2270*1480*980
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	2730*1600*1080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	3130*1600*1080

Product Details
Spiral Feeder of Lw Model 2 Phase Decanter Centrifuge with High Performance
The spiral feeder is made of 304 stainless steel, and the forging process is adopted , which can enhance its corrosion resistance.
BD structure, spraying hard alloy powder on the surface of the blade. The thickness is over 3mm .The spiral outlet is equipped
with a replacement hard alloy sleeve, which greatly prolongs the service life of the machine blade. Because of this technology,the maintenance cost of the machine is greatly reduced. Other parts in contact with the material are 304 stainless steel.
Drum of Lw Model 2 Phase Decanter Centrifuge with High Performance
The drum is cast by 304 stainless steel in centrifugal casting, the forging process is adopted , which can enhance its corrosion resistance, The replaceable alloy sleeve is installed in the solid state outlet, so that the mother material of the drum's outlet is not worn, and the wear-resistant bar is installed in the drum to make the drum inside not worn.
PLC Control Panel of Lw Model 2 Phase Decanter Centrifuge with High Performance
The electrical control adopts the double conversion auto control system, which can display the parameters such as frequency, rotation speed, differential speed and current of operating major and auxiliary electrical engine.
Eletrical Components: SIEMENS/Schneider/ABB

Application Fields Lw Model 2 Phase Decanter Centrifuge with High Performance
1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental Protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum And Chemical Industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other Fields
Pharmaceutical intermediates,salts and manures,etc.
The Possibilities of our SHENZHOU Decanter Technology
* Efficient dewatering performance: Reduce sludge volume by up to 90 %
* Reduce disposal costs
* Minimize the need for coagulant or flocculant
* Reuse process water and reduce fresh water consumption
* Maintenance-friendly design
* Special wear protection adapted to paint sludge processing
* Low space requirements due to compact construction of the centrifuges
* "Made in China" with decades of the tried and true expert knowledge of our employees to ensure the long life, high value, and efficiency of our machines.

Products Packaging of Lw Model 2 Phase Decanter Centrifuge with High Performance
Standard seaworthy packing suitable for international sea shipment.
Packing Material: Plywood case
Shipping Mark: Customized
Damping Material: Yes

Packing Parts of Lw Model 2 Phase Decanter Centrifuge with High Performance
1. Decanter centrifuge
2. Control Box
3. Installation Material


Company Profile of shenzhou Group
Shenzhou Co., Ltd. is formerly restructured from a state-owned enterprise founded in the mid-1970s, with more than 40 Years of production history, the company is committed to the R&D and manufacturing of (Decanter Centrifuge / Stacking Screw Dehydrators / Three-Phase Centrifuge / Complete Sets Of Sewage Treatment Equipment), providing centrifugal separation equipment and solutions for tens of thousands of domestic and overseas users.

The equipment is currently exported to the United States, Canada, Russia, Brazil, Croatia, Czech Republic and other 70 countries. Tailor-made exclusive solutions to solve your separation problems. Focusing on solid-liquid separation solutions for decades, it has provided professional services to nearly 10,000 companies worldwide. Professional product application technicians will tailor-made filtration and separation equipment solutions for you to solve separation problems. One-stop service makes you more worry-free.
