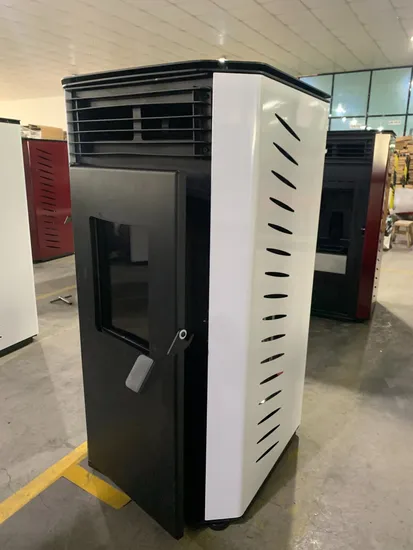

Biomass Pellet Stove with Wood Pellet Burnt

Product Description

pellet stove

Hot Air	Wood Pellet Stove CR-01
	Nominal output power	9 KW
	Minimum output power	3 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	18Kg
	Pellet hourly consumption (Max)	1.8Kg/h
	Pellet hourly consumption(Min)	0.6Kg/h
	Automatic Burning Time (Min)	≈10h
	Automatic Burning Time(Max)	≈30h
	Heat volume	60-80m2
	Efficiency at Max	≥88%
	Electronic Consumption	47-380W
	Air inlet pipe / smoke outlet pipe	50/80mm
	N.W / G.W	87 / 94.6 Kg
	Dimension(W*H*D)	550*950*500mm
	Package Size(W*H*D)	600*1090*550mm
(By 20'GP /40'HQ container)Loading QTY around72/144PCS

Hot Air	Hot Selling! Wood Pellets Stove CR-02 Double doors
	Nominal output power	9 KW
	Minimum output power	3 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	18Kg
	Pellet hourly consumption (Max)	1.8Kg/h
	Pellet hourly consumption (Min)	0.6Kg/h
	Automatic Burning Time(Max)	≈30 h
	Automatic Burning Time (Min)	≈10 h
	Heat volume	60-80 m2
	Efficiency at Max	≥91%
	Electronic Consumption	47-380W
	Air inlet pipe / smoke outlet pipe	50/80mm
	N.W / G.W	85 / 93 Kg
	Dimension(W*H*D)	515*965*490mm
	Package Size(W*H*D)	565*1100*550mm
(By 20'GP/40'HQ container)Loading QTY around 80//168PCS

Hot Air	New! Wood Pellets Stove CR-03
	Nominal output power	12 KW
	Minimum output power	4 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	18Kg
	Pellet hourly consumption (Max)	2.4Kg/h
	Pellet hourly consumption (Min)	0.8Kg/h
	Automatic Burning Time(Max)	≈22 h
	Automatic Burning Time (Min)	≈7 h
	Heat volume	80-120 m2
	Efficiency at Max	≥91%
	Energy efficiency class	A+
	Electronic Consumption	47-380W
	Air inlet pipe / smoke outlet pipe	50/80mm
	N.W / G.W	99 / 107.6 Kg
	Dimension(W*H*D)	505*1035*505mm
	Package Size(W*H*D)	550*1165*550mm
(By 20'GP/40'HQ container)Loading QTY around 80//168PCS

Hot Air	New! Wood Pellets Stove CR-04 Double doors
	Nominal output power	12 KW
	Minimum output power	3 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	17 Kg
	Pellet hourly consumption (Max)	2.4 Kg/h
	Pellet hourly consumption (Min)	0.6 Kg/h
	Automatic Burning Time(Max)	≈28 h
	Automatic Burning Time (Min)	≈7 h
	Heat volume	80-100 m2
	Efficiency at Max	≥91%
	Electronic Consumption	47-380W
	Air inlet pipe / smoke outlet pipe	50/80mm
	N.W / G.W	101 / 110Kg
	Dimension(W*H*D)	610*935*500mm
	Package Size(W*H*D)	660*1080*550mm
(By 20'GP/40'HQ container)Loading QTY around 72//144PCS

Hot Air	Hot Selling! Wood Pellet Stove CR-05
	Nominal output power	8 KW
	Minimum output power	3 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	16 Kg
	Pellet hourly consumption (Max)	1.6 Kg/h
	Pellet hourly consumption (Min)	0.6 Kg/h
	Automatic Burning Time(Max)	≈25 h
	Automatic Burning Time (Min)	≈10 h
	Heatable volume	60-80 m2
	Efficiency at Max	≥90%
	Electronic Consumption	40-380W
	Air inlet pipe / smoke outlet pipe	50/80mm
	N.W / G.W	82.2 / 91.6 Kg
	Dimension(W*H*D)	530*923*500mm
	Package Size(W*H*D)	590*1070*560mm
(By 20'GP/40'HQ container)Loading QTY around 80/168 PCS

Cautions before Stove Operation
Before stove operation, please make sure all security components have been assembled in accordance with the installation requirement , such as the Flow Control Switch, Safety Valve, and Exhaust Valve etc.

1. The stove must be ground connection. The protection against electric shock relies on the ground connection when basic insulation fails. Please install the appropriate capacity of leakage protector in power supply circuit.

2. The power cord must be replaced by stove manufacturer, local service center or relevant specialist when it is damaged.

3. Do not use stove in the environment which contains explosive of flammable gas, liquid or dust because of the fire.

4. Someone must be on duty during the stove operation.

5. Before stove operation, please make sure that the Water Supply Valve is open and the water tank has been filled with water.

6. Do not place flammable and explosive articles within 0.5 meters of stove and outside smoke vent.

7. Don't place any covering on the stove.

8. Keep elderly and children away from high-temperature parts of stove, such as: Fire Viewing Window Glass, Front Panel, Left & Right Side Panel, Hopper Lid and Exhaust Pipe etc.

9. Please do regular maintenance and cleaning in accordance with maintenance instruction. Before doing maintenance and cleaning, please make sure that stove has been cool down.

10. If a failure occurs, please shut down the power immediately and contact local dealer for a specialist.

Ducted Air	Wood Pellet Stove CR-06P
	Nominal output power	9 KW
	Minimum output power	3 KW
	Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
	Hopper Capacity	14Kg
	Pellet hourly consumption (Max)	1.8 Kg/h
	Pellet hourly consumption(Min)	0.6 Kg/h
	Automatic Burning Time (Min)	≈9 h
	Automatic Burning Time(Max)	≈23 h
	Heat volume	40-80 m2
	Efficiency at Max	≥87%
	Electronic Consumption	47-380 w
	Air inlet pipe / smoke outlet pipe	50/80 mm
	N.W / G.W	83 / 89.6 Kg
	Dimension(W*H*D)	797*935*305mm
	Package Size(W*H*D)	860*1080*370mm
(By 20'GP//40'HQ container)Loading QTY around 72/156PCS

Pellet Fireplace DF-60
Nominal output power	9 KW
Minimum output power	3 KW
Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
Hopper Capacity	12 Kg
Pellet hourly consumption (Max)	1.8 Kg/h
Pellet hourly consumption (Min)	0.6 Kg/h
Automatic Burning Time(Max)	≈20 h
Automatic Burning Time (Min)	≈7 h
Heat volume	60-80 m2
Efficiency at Max	≥90%
Electronic Consumption	70-380W
Standard air inlet / flue outlet Ø	50/80mm
N.W/ G.W	99/107 Kg
Dimension(W*H*D)	850*583*577 mm
Package Size(W*H*D)	890*713*617 mm

Pellet Stove CR-01P
Nominal output power	9 KW
Minimum output power	3 KW
Rating Voltage and Frequency	220-240V/50Hz 110-120V/60Hz
Hopper Capacity	18Kg
Pellet hourly consumption (Max)	1.8Kg/h
Pellet hourly consumption(Min)	0.6Kg/h
Automatic Burning Time (Min)	≈10h
Automatic Burning Time(Max)	≈30h
Heat volume	80m2
Efficiency at Max	≥87%
Electronic Consumption	40-380W
Standard air inlet / flue outlet Ø	50/80mm
N.W / G.W	91 / 98.6 Kg
Dimension(W*H*D)	500*950*550mm
Package Size(W*H*D)	560*1080*610mm
