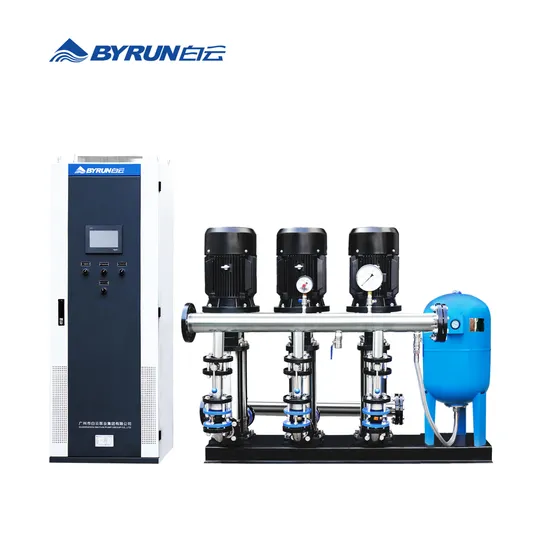

BPS Series Intelligent Frequency Conversion Water Supply Equipment

Product Description

Product DescriptionBPS Intelligent Frequency Conversion Water Supply Equipment
[Overview]
♦ BPS series environmentally friendly frequency conversion water supply equipment is a new generation of high-tech energy-saving equipment developed on the basis of absorbing the advanced technology of similar products at home and abroad, combined with the current actual situation, the equipment applies frequency conversion speed regulation technology to complete sets of water supply equipment, and integrates mechanical, electrical, microcomputer control in one of the automatic control equipment, through the closed-loop control of the equipment outlet pressure, the formation of a constant pressure fixed value automatic control system that can monitor the number of pump motors, speed and achieve error-free adjustment. At the same time, the control system adopts the latest fuzzy algorithm programming, so that the BPS series environmentally friendly frequency conversion water supply equipment has the advantages of advanced performance, reliable operation, reasonable structure, high control accuracy and high degree of automation, so as to achieve the most ideal economic operation effect.
[Features]
♦ Compact design, small size, light weight, beautiful appearance, outstanding performance;
♦ The booster pump adopts advanced manufacturing technology of stamping and welding , ensuring stable quality, high efficiency and energy saving;
♦ Reliable operation: the use of imported frequency conversion speed governor and domestic high-quality water pump, with perfect protection function and automatic and manual conversion function, so that the operation is very reliable.
♦ Simple operation: using fully automatic control, the operator only needs to convert the control cabinet switch, and the working conditions that the user required is done.
♦ High efficiency and energy saving: the equipment adjusts the speed of the pump according to the change of the user's water consumption, so that the pump always works in the high-efficiency area, and the power saving effect is obvious.
♦ Extend the service life of the engine and pump: The soft start can be reliably realized for multiple pump sets, and the operation takes turns, which greatly prolongs the service life of the pump and engine.
[Application]
♦ Flow range: 4~3000m³/h
♦ Head Range: 10~250m
♦ Pressure adjustment accuracy: ±0.01MPa
♦ Working mode: full frequency conversion operation or rotation frequency conversion
♦ Operation mode: manual, automatic, remote
♦ Special working conditions, professional customized services supported.
Model Description
Product Parameters
Product Structure

No.	Name	No.	Name
1	Main pump	6	Contact pressure gauge
2	Valve	7	Pressure transmitters
3	Soft joint	8	Water inlet main
4	Pneumatic tanks	9	Outlet manifold
5	Support frame	10	Base

Packaging & Shipping(Packaging example)Company Profile
GUANGZHOU BAIYUN PUMP GROUP CO.,LTD. is a large-scale high-tech enterprise group integrating research and development, design, manufacturing, sales, installation and service of various pumps, water supply equipment,water treatment equipment, environmental protection equipment,intelligent control equipment, intelligent water systems. The group owns 5 manufacturing bases. It is a well-known enterprise in the domestic pump industry and a leading pump enterprise in Guangdong province.
FAQQ: Are you trading company or manufacturer ?
A: We are factory.Base on Guangzhou City in China.
Q: How long is your delivery time?
A: Generally it is 3-4 weeks for regular product. Delivery time of OEM/customized product will be provided along with quotation.
Q: What is your minimum order quantity(MOQ)?
A: 1 set
Q: What is your terms of payment ?
A: 30% T/T deposit ,70% balance before shippment.
