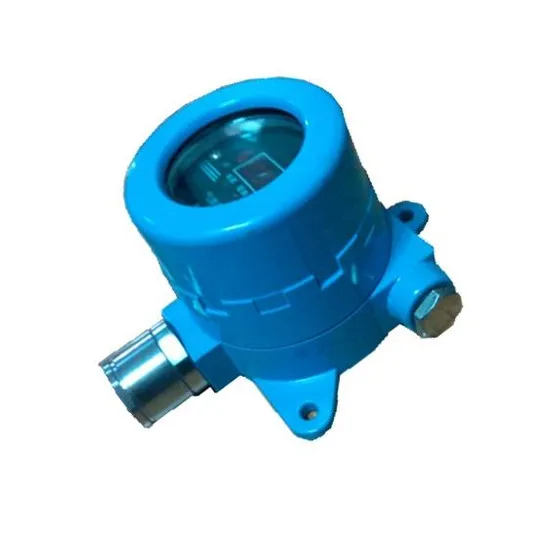

4-20mA Combustible Toxic Gas Detector Gas Transmitter (MT005)

Product Description

4-20mA Combustible Toxic Gas Detector Gas Transmitter (MT005)
Introduction:
MT005 gas detector adopting high-quality catalytic gas sensor and SMD arts and
crafts, has advantages of good reproducibility, disturbing-proof against temperature and
humidity, long life-span and easy operation, so it is suitable for gas detection for industrial
use. It can transfer the gas concentration in air into digital signal output. It adopts output of
4-20mA three-line electric current signal, which has advantages of long-distance transmit
and good disturb-proof. It is suitable for gas detection in refineries, chemical plant, LPG
station, gas boiler, and Spray-Paints etc where gas leakage easily.
Technical Data:
Sensor type: Catalytic or electrochemical gas sensor
Gas sampling: Natural diffusion
Power supply: DC24V±25%
Power consumption: ≤3W
Working method: Continuous monitoring
Error rate: ≤±5%F.S.
Indication method: 4-digit LED light
Condition display: 3 LED lights indicate fault alarm, L-alarm level alarm and H-alarm level
Operation: Infrared remote control
Response time: ≤30s (LEL) / ≤60s (toxic gas)
Working temperature: -40~70 Selsuis degree (LEL) / -20~50 Degree (toxic) Working humidity: <93%RH
Explosion-proof: Ex dIICT6
Protection: IP55
Pressure Limit: 86-106kPa
Signal output: 4~20mA
2 relay output
Install screw thread: G3/4"
Cable dimension: ≥1.5mm2×3
Transmit distance: ≤1000m

Gas	Range	Resolution	L-alarm	H-alarm
LEL	0-100%LEL	1%LEL	20%LEL	50%LEL
LEL Vapor	0-100%LEL	1%LEL	20%LEL	50%LEL
CO	0-1000PPM	1PPM	35PPM	200PPM
H2S	0-100PPM	1PPM	10PPM	15PPM
NH3	0-100PPM	1PPM	25PPM	50PPM
CL2	0-20PPM	0.1PPM	5PPM	10PPM
O2	0-30%VOL	0.1%VOL	19.5%VOL	23.5%VOL
SO2	0-500PPM	1PPM	10PPM	50PPM
CO2	0-6000PPM	1PPM	1500PPM	2000PPM
