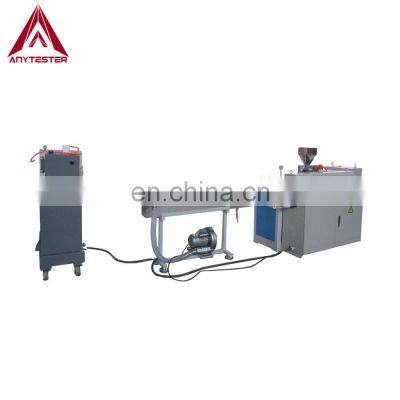

Lab Scale Single Screw Extruder System Plastic Extruders

Product Description

Product Description
Product DescriptionAT392 Small scale Single Screw Extruder System is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable forSmall scale production.SpecificationModelAT392Speed5-65 rpm adjustableOutput4~15kg/hGearboxA. Reduction ratio: 16:1B. Maximum input power: 11KWC. Forced oil immersion circulation system, Grinding gear with hardtooth surface, low noise and high life, reliable operation Barrel and screwA. Material for screw and barrel is 38CrMoAlAB. Nitriding layer depth: 0.4-0.7mm, nitriding hardness: screw 850HV, barrel 920HV, exhaust typeC. Screw diameter: 40mm, exhaust typeD. Aspect ratio: L/D=30:1E. Screw speed: 5-65 rpmF. Surface roughness of screw flight: 0.4umG. The inner surface roughness of the barrel: 0.4umTemperature rangeA. Using 4 sets of inner air trough cast aluminum heater B. Heating power supply: AC220V, 50 HZ, 1.3KW per group C. Heater thickness: 20mmCooling deviceA. Cooling with 3 sets of fansB. Fan power supply: 3-AC380V, 50HZ,C. Cooling fan power 150WMain motorA. Motor power: 7.5KWB. Electric form: AC motor, 1450rpmC. Motor and host transmission, V-belt drive D. The motor and the host are installed separately (the direct connection can also be used)4 Hole Strand Extrusion Die A. Mold material: stainless steelB. Number of discharge holes: 4C. Discharge aperture: 3.5mmCooling water tankA. Material: Stainless steelB. Length: 2.5 metersC. Cross bar: 3 groupsD. Water inlet and outlet: each setE. Diameter of stainless steel pipe:F″ for inlet pipe, 1″ for outlet pipe.Air dryerA. Machine baseB. Water suction port material: stainless steelC. Air-drying chamber material: stainless steelD. Power: 0.37KWCantilever cold-strand pelletizer Motor power (kw): 1.1Speed regulation mode: electromagnetic speed regulationNumber of diced strips (root): ≤8 Pellet size (mm): φ3×7Rotary knife diameter & length mm: φ100×60Rubber roller diameter & length mm: φ80×60 (wear-resistant and high-temperature resistant synthetic rubber roller)Power supply3phase, AC380V, 50HzDetails & Features★Rack is welded by section steel and treated by response force. It has high rigidity and small deformation★ PID/LED/RKC intelligent digital temperature controller, high precision digital instrument display all the parameters of the extrusion★ Material for Screw and Barrel: 38CrMoAl chromium molybdenum alloy, surface quenched, nitride, chromium plating, polishing and ultra-precision honing process, hardness HRV850~920, roughness Ra is less than or equal to 0.4 mu m, depth of reach more than 0.6mmOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
