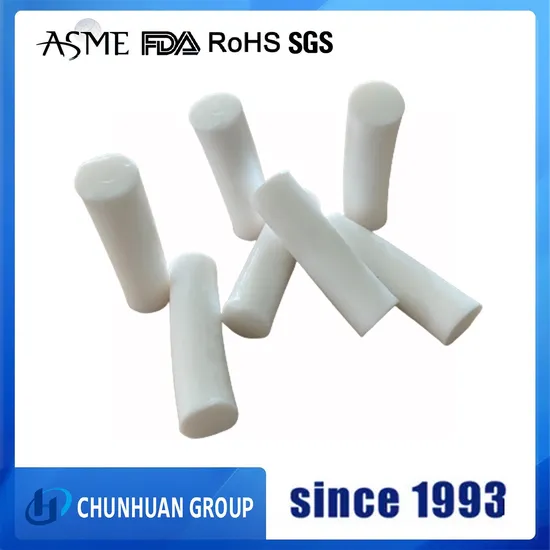

White Expanded 100% Pure PTFE Sealing Cord for Graphite Lining

Product Description

Factory Price White Expanded PTFE Round Sealing Cord Rope
Product Description Expanded PTFE Rope is made of 100% PTFE of puffed PTFE material cut or punched. Expanded PTFE material (eptfe) expands PTFE into a unique material with strong, tough and porous properties and is highly fibrotic.
It not only maintains the unique properties of PTFE itself - excellent chemical stability (not affected by general chemicals); extremely low coefficient of friction; wider operating temperature; non-aging and permanent durability;
Now its multi-fiber structure gives it an unimaginable tenacity as a sealing product, and more importantly, it fundamentally solves the common problems of other types of sealing materials -- creep and cold flow, which greatly improves the performance compared with pure gaskets and filled gaskets. In addition, it is easy to cut, easy to install, and has a long service life. This is undoubtedly a remarkable revolution.
Our Advantages
1. Easy to cut, asy to install can be mechanical stamping or manual cutting into any shape of the gasket, let your work become easier.
2. It's suitable for rough surface has unique compliance forming ability, it can produce good sealing effect on rough or damaged flange surface without increasing much pressure.
3.Extremely strong chemical corrosion resistance does not react with any chemical except for a very small number of chemicals such as fused alkali metals, tertiary nuclei, etc., and can be applied in all sealing occasions within the allowable range of temperature (315ºC), which will greatly reduce the variety and number of seals.
4.The unique high density fiber structure with good creep resistance and cold resistance, it has strong creep resistance. Its mechanical properties are very stable because it contains no adhesive and additives.
REGULAR SIZE DETAILS
Diameter: 4mm,6mm,8mm10mm,12mm,14mm,16mm
Length: As your request
Production Ability: 40 ~ 50 kg per day
APPLICATION IN FOLLOWING INDUSTRIES
Chemical, petrochemical, oil refining, chlor-alkali, acid making, phosphate fertilizer, pharmaceutical, pesticide, chemical fiber, dyeing, coking, gas, organic synthesis, non-ferrous smelting, iron and steel, atomic energy and high-purity products production (such as ion membrane electrolysis), viscous material transportation and operation, highly strict hygiene requirements of food, beverage and other processing and production departments.
MAIN PROPERTIES

Inspection Item	Unit	Standard
Work Temperature	ºC	-240 ~270,Melt 315
Tensile strength	Mpa	≥10 F-152
Compressive Strength	Mpa	≤ 140
Compression(35mpa load)	%	65 F-36
Recovery(35mpa load)	%	11.61 F-36
Creep(100 degC ×22hr)	%	68.32 F-38
Nitrogen-seal(mi/hr-17.25mpa)	Mpa	0.16Internal Pressure 4
Nitrogen-seal(ml/hr-35mpa)	Mpa	0.0037 Internal Pressure 4
Density	g/cm3	0.9 to 1.0
