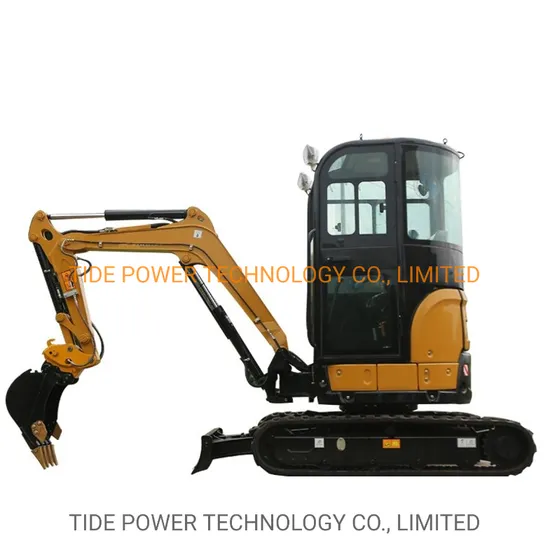

New Crawler Excavator Mini Digger 3 Tons Ger for Sale
Basic Info.
Model NO.
TD25U
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.08m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Model
Perkins403D-11
Pressure to The Ground
26 Kpa
Pump
28L/ Min
Maximum Digging Force
16.7kn
Working Speed
Low 2.3km/H, High 4.1km/H
Power
14.7kw/2200rpm
Maximum Digging Height
3744mm( or 4355mm )
Maximum Digging Radius
4040mm
Minimum Turning Radius
1778mm
Maximum Dumping Height
2670mm
Swing Speed to Platform
13rpm
Bucket Width
500mm
Operation Hydraulic Pressure
21MPa
Width of Track
250mm
Transport Package
Plastic Package
Specification
2-3 tons
Trademark
Tide
Origin
China
HS Code
84295212
Production Capacity
2000
Product Description
Tide wholesale Hydraulic2.5 tons zero tail New Mini Excavator| Model | TD10 | TD12 | TD20U | TD25U | TD30U |
| Dimensions | |||||
| A- Overall Length | 2770mm | 2550mm | 3550mm | 3870mm | 4010mm |
| B- Overall Height | 1000mm | 1500mm | 2200mm | 2360mm | 2360mm |
| C- Overall Width | 925mm | 870mm | 1320mm | 1420mm | 1540mm |
| D- Track Width | 180mm | 180mm | 250mm | 250mm | 250mm |
| E- Platform Turning Radius | 1330mm | 1330mm | 730mm | 645mm | 710mm |
| F- Length of Track | 1210mm | 1200mm | 1650mm | 1895mm | 1895mm |
| G- Sprocket to Idler Centres | 910mm | 910mm | 210mm | 250mm | 250mm |
| H- Between Undercarriage and Ground | 380mm | 380mm | 210mm | 250mm | 250mm |
| I- Between Boom and Ground | - | - | 1320mm | 1340mm | 1380mm |
| J- Width of Platform | 896mm | 896mm | 970mm | 1350mm | 1350mm |
| L- Between Platform and Ground | 380mm | 380mm | 480mm | 480mm | 480mm |
| 20FT Load | 4 Sets | 4 Sets | 4/2 Sets | 2 Sets | 2 Sets |
| 40GP Load | 8 Sets | 8 Sets | 8/4 Sets | 4 Sets | 4 Sets |
| Performance | |||||
| Engine Model | KOOP | PERKINS 403D-11 | |||
| Power | 8.6kW | 14.7kW/2200Rmp | |||
| Operation Pressure | 16Mpa | 16Mpa | 18Mpa | 21Mpa | 21Mpa |
| Max. Digging Force | 7.2KN | 7.2KN | 12KN | 17.6KN | 18.2KN |
| Gradeability | 30° | 30° | 30° | 30° | 30° |
| Ground Pressure | 32Kpa | 32Kpa | 32Kpa | 26Kpa | 26Kpa |
| Travel Speed | 2Km/h | 2Km/h | 2.7Km/h | 2.3-4.1Km/h | 2.3-4.1Km/h |
| Pump Flow Rate | 21.6L/min | 21.6L/min | 2*17.6+6.6L/min | 28L/min | 28L/min |
| Platform Swing Speed | 12rpm | 12rpm | 13rpm | 13rpm | 13rpm |
| Bucket Capacity | 0.028m³ | 0.06m³ | 0.07m³ | 0.08m³ | 0.09m³ |
| Bucket Width | 410mm | 410mm | 450mm | 500mm | 550mm |
| Boom Swing | - | - | 45°Left/78° Right | ||
| Overall Weight | 800Kg | 800Kg | 1930Kg | 2450Kg | 2650Kg |
| Operating Dimensions | |||||
| A- Max. Digging Height | 2650mm | 2650mm | 3300/3825mm | 3744/4335mm | 3865/4510mm |
| B- Max. Dumping Height | 1850mm | 1850mm | 2360mm | 2670mm | 2760mm |
| C- Max. Digging Depth | 1650mm | 1650mm | 2200/2405mm | 2200/2486mm | 2580/2710mm |
| D- Max. Digging Radius | 2900mm | 2900mm | 3975mm | 4155mm | 4375mm |
| Powerful and reliable Perkins/Yanmar engine delivers superior horsepower and performance in a compact size to help you work in the limited space. Imported hydraulic system & pilot operation levers provide smooth control and easy operation. A range of tools are matched to the excavator to optimize performance and deliver excellent value through high productivity. | |||||
