Laboratory High Throughput Tissue Grinder Sample Uniform Sufficient Cryo-Grinder Suitable

Product Description

Product Description

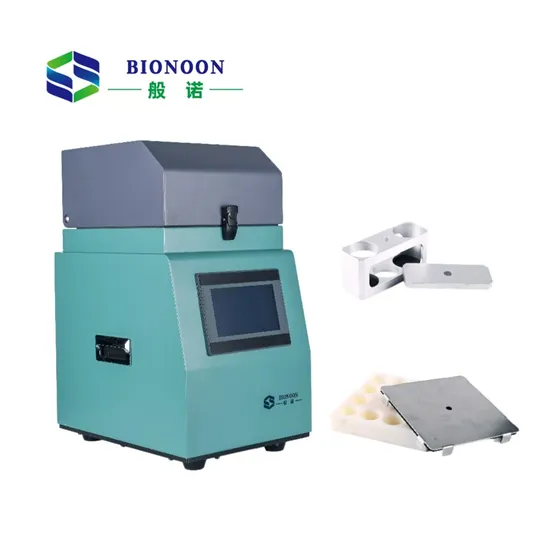

BIONOON High-throughput Tissue Grinder adopts special vertical direction and left and right radial vibration. Due to its inertia, the spheres in the tank impact the sample with high energy on the smooth inner wall of the grinding tank and thereby pulverize the sample. The rotation of the milling jar combined with the movement of the milling balls produces intensive mixing of the sample. Mixing can be improved even further by using multiple spheres. When using many small spheres (such as glass spheres), biological cells can be broken. The friction and impact between balls can effectively cause the destruction of cells and quickly achieve the purpose. Besides, that makes the samples contact more fully and uniformly with better sample repeatability and no cross-contamination between samples.
Our Advantages
We are a comprehensive enterprise specialising in the research, development, production, sales and service of vacuum centrifugal concentration, vacuum freeze-drying, grinding and ultrasonic crushing laboratory instruments and life science instruments and have a professional factory.
⊙High number of operations with good results ⊙Touch screen easy to operate
⊙No cross infection ⊙Good repeatability
Product Features
1. Efficient and fast work can be completed within thirty seconds or so 192 * 2 ml of the sample grinding. Save time and labor, batch to batch, intra-batch differences are small. The extracted protein activity is higher and the nucleic acid fragments are longer.
2. Grinding tank in the crushing process in a fully closed state, can be used in disposable centrifuge tubes and beads. Samples are kept intact in the jar, avoiding cross contamination between samples and outside contamination.
3. Touch screen humanized operation interface, built-in program controller, grinding time, rotor vibration frequency and other parameters can be set.
4. When low temperature grinding environment is needed, the adapter with samples can be immersed in liquid nitrogen to cool down for 1-2 minutes, remove it and move it to the main machine for quick fixation to start grinding, no need to freeze again, saving liquid nitrogen.
5. Set the same program for the same tissue sample to get the same grinding effect. Short working time, the sample temperature will not rise.
6. Mainly used for crushing, mixing, homogenization and cell pulverization, sample pre-treatment of biological samples, large-volume automated rapid extraction of genomes.
7. Sample characteristics: hard, medium hard, soft, brittle, elastic, containing fiber.
8. 7-inch touch screen, display work status, can be convenient and intuitive operation (optional programming software)
9. Vertical direction and left and right radial vibration generated by the impact force, friction.
10.Grinding jar material: hard rigid, stainless steel, tungsten carbide, onyx, zirconia, PTFE aluminum alloy, can be applied to any material samples, can accept customization.
11.Grinding ball material / diameter: hard rigid, stainless steel, tungsten carbide, agate, zirconia, ceramics, chrome steel, quartz sand / 0.1-30mm, according to the experimental requirements.
12. Grinding mode: wet grinding, dry grinding, ultra-low temperature grinding can be.
13. The number of grinding platform: can accept the number of grinding jar ≥ 2.
14. In and out of the material size: no requirements, according to the grinding tank adjustment.
15. Final discharge particle size: ≤3μm.
16. Stroke of fixture: 40mm (vertical).
17. Acceleration / deceleration: within two seconds to reach the maximum / low speed.
18. Safety devices: working with safety locks, open cover protection, full protection. Fastening device with automatic center positioning.
19. Two types of adapters can be selected.
20. Sample handing capacity: 48*(0.2-0.5ML),24*2ML ,12*(5-10)ML,6*15ML ,2*25ML,2*50ML .
Scope of application
⊙Plant Grinding
⊙Tissue Grinding
⊙Fungi Grinding
⊙Grinding of food and medicine
⊙Mineral Grinding
⊙Plastic Grinding
