N2o Air Industrial Ut Gas Bottle 37mn 150bar Tped CO2 Gas Tanks
| US$98.00-130.00 | 100 pcs (MOQ) |
Basic Info.
Model NO.
80L
Function
Heat Pressure Vessel
Application
Mixture
Material
Alloy
Pressure
Working Pressure: 150bar
Storage Medium
Gas
Pressure Level
Hydrostatic Test Pressure: 250bar
Condition
New
Production Cycle
15 to 30 Days
Processing Capacity
Annual Output of 800, 000
Production Standard
ISO9809-1
Charging Medium
Oxygen, Nitrogen, Argon, Helium, Laughing Gas, Air
Color
Refer to Raul′s Color Card
Assembly Method
Gas Cylinder Body + Valve
Use Cylinders
Our Seamless Steel Cylinders Are Widely Used in in
Products Can Be Exported to Countries or
China, Southeast Asia, Middle East, Asia, Africa
Transport Package
Net Sleeve or Carton or Tray
Specification
80 litres
Trademark
HS
Origin
Made in China
HS Code
7311009000
Production Capacity
Annual Output of More Than 800, 000 Pieces
Product Description

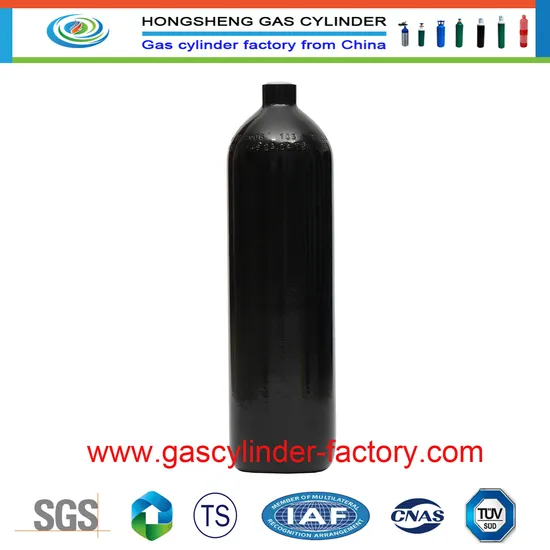

80L ISO9809-1 Helium N2O Air Industrial UT gas bottle 37MN 150bar TPED CO2 gas tanks Argon Nitrogen Mixed TUV Medical gas cylinder
Shandong Hongsheng Pressure Vessel Co., Ltd. is a professional global gas cylinder manufacturer registered in China.
Registered in Qihe County, Dezhou City, Shandong Province, China, the company has obtained the Chinese production cylinder B1 license and TUV, CE certification
Product Information:
| Name | parameter | Name | parameter |
| Volume | 80 litres | Place of origin | Made in China |
| Cylinder outer diameter | 267mm | Minimum design wall thickness | 5.8mm |
| Material | 37MN | Cylinder body weight | 84.7kg |
| Production standards | ISO9809-1 | Height of the cylinder body | 1730mm |
| Working pressure | 150BAR | Maximum gas storage | 12m3 (12000L) |
| Hydrostatic test pressure | 250BAR | Cylinder mouth threads include | PZ27.8, 25E; 3/4-14 NGT, etc. |
| Aliases | 150bar gas Cylinders; 80L 150bar Gas tanks, 80L 150bar Oxygen tanks, 80L Oxygen tanks, 12m3 gas cylinders, 12m3 gas tanks; Fire gas bottles ,80litre Fire cylinders; 80L Nitrogen Fire Cylinder, Refuge Chamber Gas Tanks, 80 litre Carbon Dioxide Fire Cylinder,TPED Oxygen tanks;34CrMo4 gas tanks, 34CrMo4 Oxygen cylinders, TPED Medical gas cylinders, TPED Medical gas tanks, TPED Medical Oxygen cylinders, TPED Medical Oxygen tanks, TPED Industrial gas cylinders, TPED Industrial gas tanks, TPED Industrial Oxygen cylinders, TPED Industrial Oxygen tanks;TPED 34CrMo4 gas cylinders, TPED 34CrMo4 gas tanks; ISO9809-1 gas cylinders; IsO9809-1 gas tanks; 37Mn gas tanks; gas tanks ;ISO9809-1 gas cylinders;Oxygen gas cylinders;Iso9809-1 Gas cylinders; ISO9809-1 gas cylinders. TPED gas tanks; Oxygen bomb; Gas cylinders; Medical Gas cylinders; Medical gas tanks. Medical gas bottle; | ||
Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.
200bar ISO9809-1 Gas cylinder product parameter sheet
| Type | Outside Diameter (mm) | Water Capacity (L) | Bottle Height (mm) | Weight (kg) | Working pressure (Bar) | Design wall thickness (mm) | Material Grades |
| WG 89-0.8-200 | 89 | 0.8 | 197 | 1.60 | 200 | 2.0 | 34CrMo4 |
| WG 89-1.0-200 | 1 | 240 | 1.83 | ||||
| WG 89-1.2-200 | 1.2 | 275 | 2.07 | ||||
| WG 89-1.4-200 | 1.4 | 310 | 2.30 | ||||
| WG 89-2.0-200 | 2 | 419 | 3.00 | ||||
| WG 108-1.4-200 | 108 | 1.4 | 233 | 2.81 | 200 | 2.4 | 34CrMo4 |
| WG 108-1.8-200 | 1.8 | 284 | 3.34 | ||||
| WG 108-2.0-200 | 2 | 310 | 3.62 | ||||
| WG 108-3.0-200 | 3 | 440 | 4.96 | ||||
| WG 108-3.2-200 | 3.2 | 464 | 5.24 | ||||
| WG 108-3.5-200 | 3.5 | 503 | 5.64 | ||||
| WG 108-4.0-200 | 4 | 568 | 6.30 | ||||
| WG 108-4.6-200 | 4.6 | 645 | 7.11 | ||||
| WG 108-5.0-200 | 5 | 696 | 7.64 | ||||
| WG 140-3.4-200 | 140 | 3.4 | 324 | 5.30 | 200 | 3.1 | 34CrMo4 |
| WG 140-4.0-200 | 4 | 375 | 5.89 | ||||
| WG 140-5.0-200 | 5 | 447 | 6.96 | ||||
| WG 140-6.0-200 | 6 | 516 | 7.56 | ||||
| WG 140-6.3-200 | 6.3 | 540 | 7.88 | ||||
| WG 140-6.7-200 | 6.7 | 569 | 8.30 | ||||
| WG 140-7.0-200 | 7 | 591 | 8.63 | ||||
| WG 140-7.1-200 | 7.1 | 598 | 8.74 | ||||
| WG 140-8.0-200 | 8 | 665 | 9.68 | ||||
| WG 140-9.0-200 | 9 | 744 | 10.7 | ||||
| WG 140-9.1-200 | 9.1 | 751 | 10.9 | ||||
| WG 140-10.0-200 | 10 | 818 | 11.9 | ||||
| WG 140-11.0-200 | 11 | 892 | 12.9 | ||||
| WG 140-12.0-200 | 12 | 966 | 14.3 | ||||
| WG 140-13.4-200 | 13.4 | 1069 | 15.5 | ||||
| WG 140-14.0-200 | 14 | 1112 | 16.4 | ||||
| WG 140-15.0-200 | 15 | 1188 | 17.5 | ||||
| WG 159-8.0-200 | 159 | 8 | 548 | 9.11 | 200 | 3.5 | 34CrMo4 |
| WG 159-9.4-200 | 9.4 | 627 | 10.8 | ||||
| WG 159-10.0-200 | 10 | 660 | 10.9 | ||||
| WG 159-11.0-200 | 11 | 716 | 11.8 | ||||
| WG 159-12.0-200 | 12 | 780 | 13.1 | ||||
| WG 159-13.4-200 | 13.4 | 861 | 15.4 | ||||
| WG 159-15.0-200 | 15 | 932 | 16.8 | ||||
| WG 165-10.0-200 | 165 | 10 | 615 | 12.5 | 200 | 3.6 | 34CrMo4 |
| WG 165-12.0-200 | 12 | 725 | 14.4 | ||||
| WG 165-15.0-200 | 15 | 880 | 17.2 | ||||
| WG 180-8.0-200 | 180 | 8 | 467 | 13.5 | 200 | 3.9 | 34CrMo4 |
| WG 180-10.0-200 | 10 | 571 | 15.4 | ||||
| WG 180-13.4-200 | 13.4 | 721 | 18.6 | ||||
| WG 180-15.0-200 | 15 | 792 | 20.2 | ||||
| WG 180-18.0-200 | 18 | 924 | 23.1 | ||||
| WG 180-20.0-200 | 20 | 1012 | 24.8 | ||||
| ISO 232-40.0L-200 | 232 | 40.0 | 1167 | 43.0 | 200 | 6.0 | 34CrMo4 |
| ISO 232-46.7L-200 | 46.7 | 1345 | 48.9 | ||||
| ISO 232-47.0L-200 | 47 | 1351 | 49.0 | ||||
| ISO 232-50.0L-200 | 50.0 | 1450 | 57.7 | ||||
| ISO 267-60.0-150 | 267 | 60 | 1330 | 66.7 | 150 | 5.8 | 37MN |
| ISO 267-68.0-150 | 68 | 1490 | 73.9 | ||||
| ISO 267-70.0-150 | 70 | 1530 | 75.7 | ||||
| ISO 267-80.0-150 | 80 | 1730 | 84.7 |
