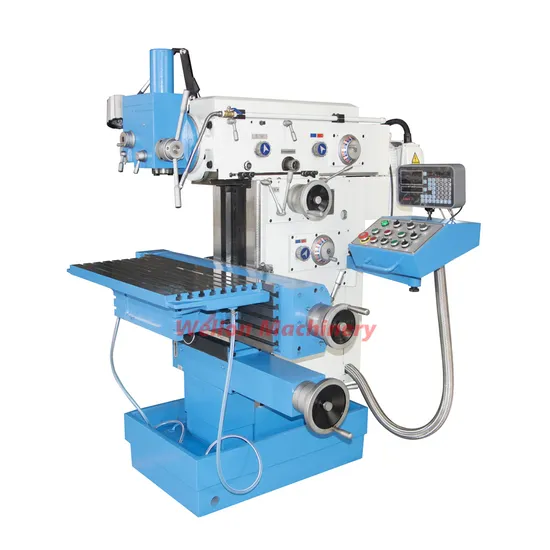

Universal Tool Milling Machine (UM300A UM400A X8130A X8132 X8140)

Product Description

Products Description:
This machine is a versatile machine of better universality ,extensively used for milling flat .Inclined surfaces and slots on metal parts and is suitable for machining tolls ,jigs fixtures and moulds as well as machine parts of complicated shapes in instruments and meters manufacturing plants and machinery building works.
With the employment of attachment, such as diving head of rotary table, etc. the machine can also be used for cutting gear .curved plants .cams and other complicate-shaped machine parts .when equipped with digital display system is may be further for boring coordinated holes.

Model		UM-300A	UM-400A
Working surface of table	Horizontal	320x750mm	400x750mm
	Vertical	225x830mm	250x1060mm
T-slots of table (Number x Width x Distance) Max travel of X,Y,Z	Horizontal	5x14x63mm	6x14x63mm
	Vertical	2x14x126mm	3x14x63mm
		400,200,390,,	500,400,400mm
Distance between horizontal spindle and horizontal table	Min	35±63mm	95±63mm
	Max	425±63mm	475±63mm
Distance between vertical spindle and horizontal table	Min	65±63mm	55±63mm
	Max	455±63mm
Distance between vertical spindle and guideway		660mm	540mm
Range of spindle speed(r/min)		40-1600(18steps)	40-2000(18steps)
Spindle taper bore		ISO40 7:24
Range of longitudinal(X),cross(Y).vertical(Z)		8-310mm/min	10-380mm/min
Rapid feed of X,Y,Z		1000mm/min	1200mm/min
Travel of vertical spindle quill		80mm
Main motor power(total motor power)(kw)		2.2(2.875)	3(5)
N.W/G.W(kg)		1200/1600	1400/1800

Standard:
Vertical spindle head
Tools set
Milling cutter arbors(16, 22, 27, 32mm)
Collets(2, 3, 4, 5, 6, 8, 10, 12mm)
Reducing sleeve(MT1, 2, 3)
Horizontal table
Optional:
Universal angular table(320X620mm)
Universal boring head(Z11 150)
Machine vice(QH125/160)
Rotary table(TS250/320)
Dividing head(F11 100)
