CNC H Beam Drilling Machine for Structure Line

Product Description

Product introduction

Name			Unit	Value	Remark
H-beam Size	H-beam		mm	150x75~1250x600
	Thickness		mm	≤80
	Length		m	15m	Can be changed according to customer's requirement
	Limitation to the min. H-beam		mm	Automatic Processing ≥3000
				Manual Processing:690 ~ 3000
Spindle	Quantity		Pc.	3
	Drilling Range	Left and right drilling unit	mm	¢12~¢26.5
		Vertical drilling unit	mm	¢12~¢33.5
	Spindle Rotation Speed		r/min	180~560
	Quick change chuck		/	Morse Taper 3#,,4#	Changeable 2#
	Feeding stroke	Left and right drilling unit	mm	140
		Vertical drilling unit	mm	240
	Feeding Speed		mm/min	20~300
	Moving distance	All spindles along the length of the workpiece	mm	520
		Left and right spindle along the up an down direction	mm	35 ~ 570	from the under side of the workpiece
		Vertical spindle on the width of the workpiece	mm	45 ~ 1160	from the benchmark side
Cooling way	compressed air + atomized drilling fluid		/	/
	Air Pressure		MPa	≥0.5
Processing precision	allowance of neighbor holes distance in one hole group		mm	≤±0.5
	In length of 10m, allowance of any holes distance		mm	≤±1
Motor Power	Three phase asynchronous motor for the running of spindle		kW	4x3	Quantity of spindle: 3
	X axis servo motor for the vertical unit		kW	0.85
	Z axis servo motor for the vertical unit		kW	1.3
	X axis servo motor of left and right side		kW	0.85x2
	Y axis servo motor of left and right side		kW	1.3x2
	Infeed motor		kW	2.2
	Three phase asynchronous motor for moving saddle		kW	0.55
Overall dimension	Length×width×height		mm	About 4700×2400×3300
Total weight			kg	About 8500

Working temperature: 0ºC ~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
Total volume :35 KVA
Oil pump motor:2.2 kW
Oil pump pressure regulating 3.5~4MP

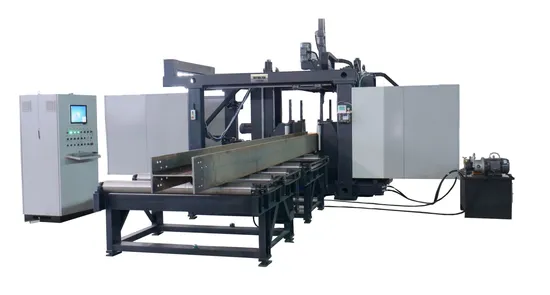

Product Image
Other products
Certifications
Company Profile
Our company is specialized in different kinds of products. We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we make our products with good quality at the reasonable price. The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.
Factory workshop
Product Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer, specialized in design, manufacture and sell CNC machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock.
Q: What is your terms of payment ?
A: Payment 30% T/T in advance ,70%balance before shippment.
If you have another question, pls feel free to contact us as below
