Henan Mine High Efficiency 5t 10t European Type Electric Hoist
| US$2,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
European Hoist
Application
Gantry Crane, Bridge Crane, Single Grinder Crane
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
2~8m/min
Maximum Lifting Height
20m
Chain Falls
1
Certification
CE, ISO9001:2000
Condition
New
Color
Yellow
Lifting Heigh
9m
Control Method
Pendant +Remote(Customized)
Work Duty
A5/M5
Lifting Weight
5t
Transport Package
Export Packing in Wooden Cases
Specification
customizable
Trademark
KUANGYUAN
Origin
Xinxiang, China
HS Code
8425110000
Production Capacity
500, 000 Sets/Year
Packaging & Delivery
Package Size
20000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
20000.000kg
Product Description

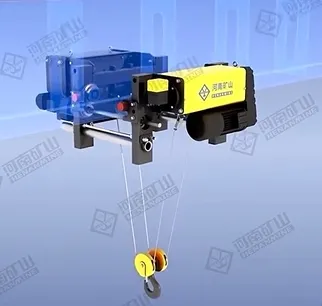

Henan Mine High Efficiency 5t 10t European Type Electric HoistProduct Description
Design, production and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM, DIN and lEC. Compared with the general QD bridge crane, its weight is reduced by about 15 ~ 30%, the maximum wheel pressure is reduced by about 10 ~ 35%, which can the requirements of crane for factory building structure and reduce production cost, As the core componentof driving mechanism, reducer gear pair with hard tooth surface and high accuracy, together with steel reelforged wheel and variable-frequency speed regulating system, which makes this type of crane becomerenewal product of traditional general bridge crane .
Main Features
1.Lifting speed: Double lifting speed
2.Travelling speed: 2~20m/min
3.Frequency inverter: Standard
4.Working class: M5
5.Control method: pendant control+ remote control
6.Geared motor brand: Germany/China top brand
7.Main electrical parts: Siemens
8.Protection class: IP54/IP55
9.Gear/coupling process: CNC
Product Parameters
| Model | Capacity (t) | Lifting height (m) | Lifting speed (m/min) | Hoist Motor (Kw) | Travel speed (m/min) | Trolley Motor (Kw) | Working Class (FEM/ISO) Hoist Trolley | |
| LFT3.2D | 3.2 | 6,9,12,15,18 | 5/0.8 | 3.2/0.45 | 20/5 | 0.25x2 | 2M/M5 | 2M/M5 |
| LFT5D | 5.0 | 6,9,12,15,18 | 5/0.8 | 6.1/1 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT6.3D | 6.3 | 6,9,12,15,18 | 5/0.8 | 6.1/1 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT8D | 8.0 | 6,9,12,15,18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT10D | 10 | 6,9,12,15,18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.37x2 | 2M/M5 | 2M/M5 |
| LFT12.5D | 12.5 | 6,9,12,15,18 | 5/0.8 | 12.5/1.5 | 20/5 | 0.55x2 | 1AM/M4 | 2M/M5 |
| LFT16D | 16 | 6,9,12,15,18 | 4/0.6 | 16/2.6 | 20/5 | 0.55x2 | 2M/M5 | 2M/M5 |
| LFT20D | 20 | 6,9,12,15,18 | 4/0.6 | 16/2.6 | 20/5 | 0.55x2 | 1AM/M4 | 2M/M5 |
| LFT25D | 25 | 6,9,12,15,18 | 3.3/0.8 | 20/5 | 20/5 | 0.75x2 | 3M/M6 | 2M/M5 |
| LFT32D | 32 | 6,9,12,15,18 | 3.3/0.8 | 20/5 | 20/5 | 1.1x2 | 2M/M5 | 2M/M5 |
| LFT40D | 40 | 6,9,12,15,18 | 0~4 | 38 | 20/5 | 1.5x2 | 1AM/M4 | 2M/M5 |
| LFT50D | 50 | 6,9,12,15,18 | 0~3 | 38 | 20/5 | 1.5x2 | 2M/M5 | 2M/M5 |
