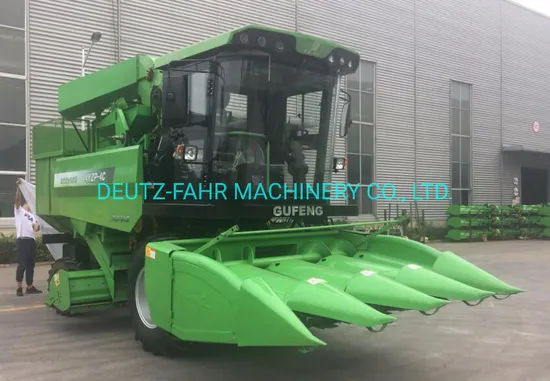

Agriculture Combine Harvester 4yzp-3L for Corn

Product Description

Model: 4YZP-3Y
Technology features: Low center of gravity, plate-type header without grain falling, suitable for hilly and mountain area. HST full hydraulic stepless speed changing gearbox, no need clutch, safe and comfortable operation. Dual arc-shaped bent glass cabin, electronic control, comfortable and efficient working. After cutting, then returning to the field, effective cutting. 4WD, high gradeability. Tech data:

NO.	ITEM		UNIT	PARAMETERS
1	Model		/	4YZP-3Y
2	Diesel engine	Model	/	SDQZ3	4D2-110U32
		Rated power	kW/hp	81/110	83/113
3	Dimension (L×W×H)		mm	5600×2040×3010
4	Working width		mm	1860
5	Elevator	Position/ width	/mm	Right position/ 375
		Maximum passing height	mm	2580
6	Minimum ground clearance		mm	260
7	Efficiency in working hour		hm²/h	0.23~0.40
8	Picking system / Length		/mm	Snapping plate+ Six - sided stalk pulling roller/ 703
	Lowest picking height		/mm	350
9	stripping machine	Stripping roller type	/	Spiral rubber roller
		Stripping roller size/ Quantity	mm/piece	Ф73×668/12
10	Grain tank	Volume	L	1800
		Unloading height	mm	1860
11	Straw processing	Header front cutting	Type	Hob type
		Returning machine	/	Sling blade type
		Returning machine width/ position	mm	1700/ Backside
		Leaf cutting type	/	/
12	Cabin model		/	Dual arc-shaped bent glass cabin
13	Gearshift method/ Driving model		/	HST+ Mechanical gearbox /4WD
14	Wheel base		mm	2138
15	Wheel track	Guiding wheel	mm	1620
		Driving wheel		1750
16	Tyre size	Guiding wheel	/	6.00-16
		Driving wheel	/	9.50-16

Other terms:
1. Delivery: 30 days for normal orders
2. Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3. Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
