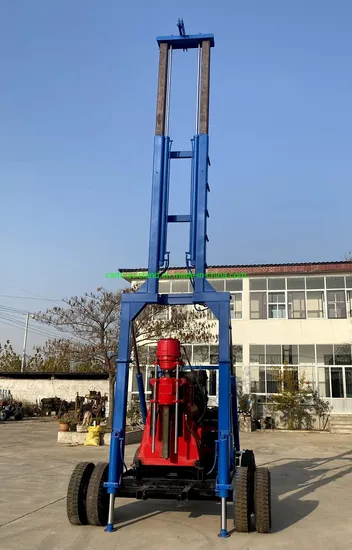

Xy-400 Portable Wheel Trailer Mounted Rotary Hydraulic Water Well Borehole Core Drilling Rig

Product Description

Product Description XY-400 Trailer Mounted Mobile Core Drilling Rig:
It is widely used in the geological general investigation and exploration, road, railway, port, bridge, water conservancy, tunnel and tall building basic exploration, kinds of hole in concrete structure, river, levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioner, and etc.
Product Features 1. It equipped the automatic hydraulic lifting drill tower, form the lift and drop tower is hydraulically operated, it is convenient and reliable, save time and reduce labour intensity;

2. The rig is equipped with wheel running gear and hydraulic cylinder pillar, the whole relocation convenient, easy to rig the level of adjustment;

3. The oil pressure to enter institutions, improve drilling efficiency;

4. With socket pressure gauge indicates pressure, easy to grasp the hole situation;

5. Diesel engine with electric start, reduce labor intensity;

6. Rig bulk portfolio, the whole removable nature, transportation, relocation convenience, and not subject to topography constraints;

7. Rig main components such as winches, wheel, transmission tower by the plant's own production, reliable, timely and convenient supply;

8. Rig is easy for operation, with high performance, easy maintenance, less investment and quick.
Product Parameters The technical parameters of XY-400 trailer mounted water well drilling rig:

Type	XY-400 Drilling Rig
Unity machine parameter
Drilling depth(m)	100,300,400
Open hole diameter max.(mm)	Φ300
End hole diameter(mm)	Φ75
Drilling rod diameter(mm)	Φ50,Φ60
Head angle range	90°~65°
Spindle
Spindle speed(r/min)	Positive rotation rate: 174,330,520,775,1082 Reverse rotation rate: 42,192
Spindle out torque max. (N.m)	3400
Spindle stroke(mm)	600
Spindle hole diameter(mm)	80
Spindle lifting capacity(KN)	60
Hoist
Single rope lifting capacity max.(KN)	30
Single rope lifting speed(m/min)	0-45
Reel diameter(mm)	200
Reel capacity(m)	50
Steel wire rope diameter (mm)	Φ12.5
Steel wire rope length of drum(m)	30
Hug floodgate belt width(mm)	90
Geared Oil Pump
Duplex gear oil pump	F532/16
Front displacement,pressure	63ml/r,20Mpa
Behind displacement,pressure	25ml/r,20 Mpa
Drilling Rig Power
Diesel engine	Yunnei490 42KW
Electric motor	30KW
Weight	3100kg
Dimension (LxWxH)	4050x2550x2450mm
Trailer Chassis
Chassis loading bearing (MT)	3
Chassis length(m)	2.6
Chassis width(m)	2
Max. trailer higher(m)	0.6
