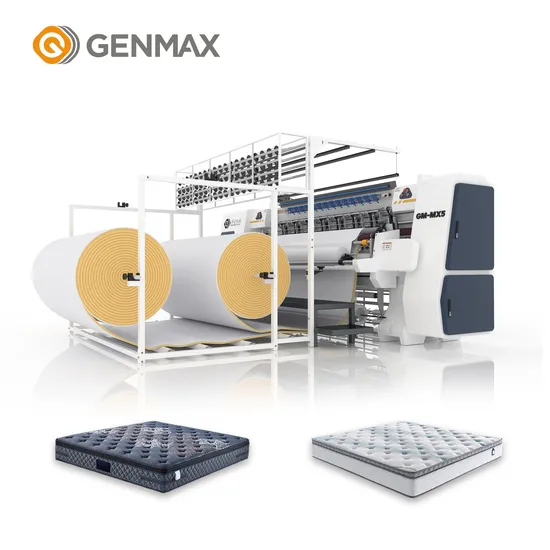

Industrial Sewing Quilting Machinery for Mattress Sewing Machinery Mx5

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you. Distance between needles is 0.5 inch and more patterns can be chosen from, which pioneer in the industry.
Can the fabric be slit accurately?
Yes. Fabric can be slit more accurately (range: 80-400mm) because of the slitting device, which pioneers in the industry. The small moving needle board makes the patterns more accurate when the machines works on special fabric and can be disassembled easily when the machine works on other kinds of fabric, which pioneers in the industry and raises the productivity.
Equipped with different kinds of cloth cylinder and can produce a large number of curtains with cloth one time.
All cloth can be finished on one machine or the combination of two machines.
Equipped with automatic oil-supply system, which not only pioneers in the industry but also raises the productivity and lengthens the life of devices.
Advanced computer controlling system and machine making craft make the performance better and the speed faster. The production is raised.
The fabric is kept away from dirt because the double rocker arms without cams are introduced to the needle bar and plate.
Can stop working automatically for personnel safety when bottom and top thread break or end or when rear or front covers are opened.
Main shaft is controlled by frequency conversion system and the automatic needle lifting frame adopts servo device.
The speed can be controlled by computer and can reach 1200 rpm.
The distance between needles can be set in the range of 3-8mm.
Can be set to stop working automatically when the quilting is finished.

Model	MX5	Dimension (L x W x H)	5400*1650*2050mm
Weight	5500Kg	Quilting width	2450mm
Distance between needle bar	50.8, 76.2, 127mm (5'') 76.2, 76.2, 152.4mm (6'')	Distance between needle	25.4mm
X-axis movement displacement	304.8mm	Quilting thickness	≤80mm
Stitch length	3-8mm	Productivity	60-300 (m/hour)
Type of needle	24/180 23/160 22/140 21/130	Main shaft speed	500-1200rpm
Voltage	380v/50hz 220v/60hz, 3-phase	Power	10kw
