Metal Bellow Seal Bgm Seal Mfl85n

Product Description

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

High Quality Multiple Spring O-ring Mechanical Seals
Description:
Replacement to:

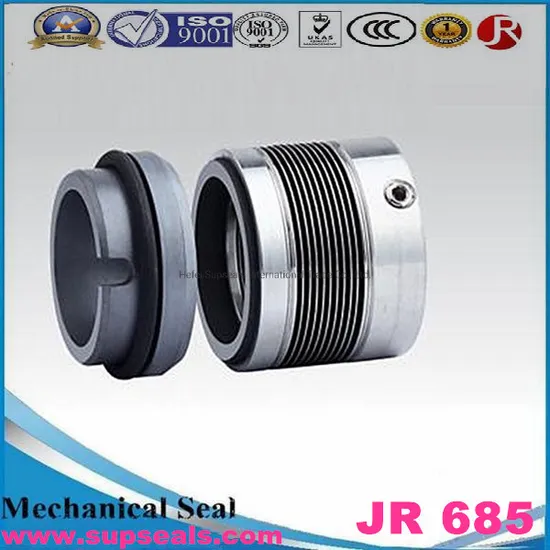

685 metal bellows mechanical seal
For big compressors and industrial pumps
Replacing the mechanical seal of MFL85N

Operational Conditions:
Temperature:-20ºC to +200ºC
Pressure: ≤2.1MPa
Speed: ≤23m/s
Materials:
Stationary Ring:TC, Silicon Carbide
Rotary Ring:Carbon ,Silicon Carbide,TC
Secondary Seal:NBR,EPDM,Viton
Bellows:Steel
Spring and Metal Parts:Steel
Applications:Oil, light hydrocarbon, aromatic Hydrocarbon, organic solvents,week acids, ammonia etc.

Operational Conditions:
Temperature:	-20ºCto+180ºC
Pressure:	≤2.5MPa
Speed:	≤15m/s
Materials:
Stationary Ring:	V1,Q1,Q2,U2
Rotary Ring:	B,A,Q1,Q2
Secondary Seal:	P,E,V,M1,M2
Spring and Metal Parts:	F,G,M
Seat Types:
Standard:
Alternative:
Applications:	Clean water, sewage water, Oil and other moderately corrosive fluids

Mechanical seal could be interchangeable with John crane,Aesseal, Vulcan, Roten seals etc.
All ranges of mechanical seals for Flygt Pumps, GRF Pumps,APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request.
With advanced designer&manufacturer of machanical seal, for industrial pump,
its range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and suto air-condition compressor lip seal.
It is widely used and highly reliable in food, drink, petroleum, chemistry,
refinery, paper making, pharmacy, power and auto industry etc.
Characteristics:
High and low temperature resistant, acid-alkali resistant, ozone resistant, aging resistant, weather resistant, good insulation property, anti-toxic, good air-permeable, etc.

Welcome to quote for more details.
