Environmentally Friendly and Degradable Roll Paper Cup Lid Making Machine
| US$22,800.00 | 1 set (MOQ) |
Basic Info.
Model NO.
KD-ZG100
Cup Size(Ounce)
2-12OZ
Speed
80-100pcs/min
Required Paper
Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
After-Sales Service
Transport Package
Wooden Case
Specification
2600x1500x1800(mm)
Trademark
KEDE
Origin
China
HS Code
8441309000
Production Capacity
200/Year
Product Description

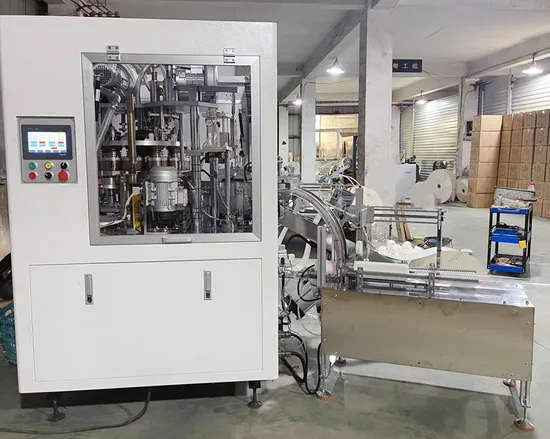

KD-ZG100 Automatic Disposable Environmental Protection Paper Cup Lid/Cover/Cap Making Forming MachineAutomatic paper lid/cover forming/making machine is used to produce a variety of shapes of coil paper cover.
It is suitable for disposable cup lid made of rolled tube paper, ice cream cup lids, coffee cup lid milk tea cup lid, etc.
Automatic paper cover forming machine adopts sophisticated forming process, complete a variety of forming process,
completely replace manual operation procedures. The equipment is stable and the production efficiency is high.
It can realize the operation of one person and one machine to a great extent. Save raw materials, low energy consumption.
Advantage: Roll paper one-time completion of die cutting, indentation, molding, finished products in one machine, speed according to cover size from 70-100pcs/min. It is the best choice of disposable paper cover machine.
Technical Parameter:
| Machine model | KD-ZG100 |
| HS code | 8441309000 |
| Paper material | One & Two side PE/PLA coated paper, glossy coated paper |
| Paper weight | 250~350 gsm |
| Lid/Cover size | Diameter 55~100 mm & 100~145mm |
| Lid/Cover Height | 8~15 mm |
| Speed | 70~100 pcs/minute |
| Power Source | AC 380V 3-phase, 50Hz |
| Total power | 10KW |
| Weight | 2500KG |
| Machine size | 2600*1500*1800mm |
| Air requirement | Consumption 0.02cubic meter/minute, Pressure:0.3MPa |
