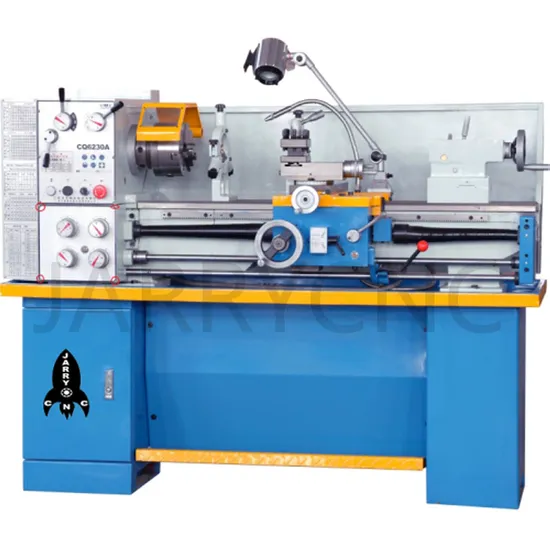

Factory Hot Sale CNC Lathe Motorized Metalworking Bench Lathe Metal 600mm Turning Universal Mini Metal Lathe Machine Machining Horizontal Manual Lathe Machine

Product Description

Product Parameters

Item		Unit	Parameter	Parameter	Parameter
			CD6241x1000	C6246x1000/1500	C6260x2000
Capacity	Max swing over bed	mm	Φ410	Φ460	Φ600
	Max swing in gap	mm	Φ580	Φ690	Φ835
	Max swing over slide	mm	Φ255	Φ274	Φ358
	Max workpiece length	mm	1000	1000/1500	2000
Spindle	Spindle thru-hole	mm	Φ52	Φ58	Φ82
	Spindle nose		D1-5	D1-6	D1-8
	Taper of spindle bore		MT6	MT6	MT5
	Spindle speed	r/min	16 steps, 45-1800	12 steps, 25-2000	12 steps, 20-1600
	Spindle motor(Double Speeds)	kW	2.2/3.3	4	7.5
Bed	Bed width	mm	250	300	400
Tailstock	Quill travel	mm	120	120	180
	Taper of center	MT	4	4	5
Tool post	Number of station/		4/20X20	4/25X25	4/25X25
	Tool section
Feed	Max X-axis travel	mm	210	290	320
	X-axis feed	mm/r	17 Sorts,0.025-0.85	42 Sorts,0.014-0.784	50 Sorts,0.01-0.286
	Z-axis feed Z-axis feed	mm/r	17 Sorts.0.05-1.7	42 Sorts.0.031-1.7	50 Sorts.0.03-0.85
	Metric thread	mm	39 Sorts, 0.2~14	41 Sorts, 0.1~14	24 Sorts, 0.25~7
	Inch thread	t.p.i	45 Sorts, 2~72	60 Sorts, 2~112	50 Sorts, 4~112
	Module thread	πmm	18 Sorts,0.3~3.5	34 Sorts,0.1~7	34 Sorts,0.25~14
	DP thread	t.p.i. π	21 Sorts, 8~44	50 Sorts, 4~112	50 Sorts, 4~112
Others	Coolant pump motor	kW	0.09	0.04	0.09
	Packing Size	mm	2070X940X1600mm	2300/2800X1120X1560mm	3535X1100X1900mm
	N/G weight	kg	1500/1760kg	1810/2110kg	3010/3400kg
Accesseries:3-Jaw-Chuck(Ø200mm),Change Gear Set,Tool-box and tools,Dead Centers,Splash Guard,Chip Tray.Chuck Guard.Stand,Foot Brake,Coolant system, Working Lamp,4-Jaw-Chuck(Ø250mm),Leadscrew guard.Follow rest,Steady rest.
Optional:2 Axis DRO

Product Description
Product features
Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.
Feeding box with 12 steps of variable speeds , covering common threading pitches
Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
High frequency hardened Two V-type widened guideway with rigidity.
Inclined wedge toolpost carriage, Camlocked tailstock; ndustrial lathe operation rod

Our Advantages

More Products

TC50-500Skewed bed control digital lathe

CQ6130A General Lathe

C6253x1500 General Lathe

CK6140x750 Flat bed CNC lathe

CK6150x1000 Flat bed CNC lathe

VMC550L Vertical Machine Center

Company Profile
Chizhou Jarry CNC Machinery Co., Ltd was established in July 2014.
We supply CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories. We also supply other machinery for our clients all over the world. Annual sales is over ten million USD. Our machines has been exporting to Europe, Asia, Africa, South America, North AmericaAustralia and others, realiable after-selling serviceOur company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers.
Our company offers variety of CNC Machining Center, CNC Lathe and other machine tools which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

exhibitions

Certifications
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, etc...
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
