High-Quality Diesel Powered Concrete Mixer
Basic Info.
Model NO.
TDCM600
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
0.9mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Model
Tdcm175-6da/B
Output
4.5m3
Drum Volume
580 Litres
Unmixed Capacity
280 Litres
Mixed Capacity
175 Litres
Engine
R180, Diesel Engine, Manual Start
Steel Thickness of Drum
4 mm
Weight
a---580kg / B---605kg
Overall Size
3720L1160W1860h mm
Towing Wheels
2 or 4 Wheels
Transport Package
One 40FT Container Loads 24unit
Specification
ISO, SGS, BESC, ECTN, BV
Trademark
TOPMAC
Origin
China
HS Code
8474310000
Production Capacity
99units Per Month
Product Description

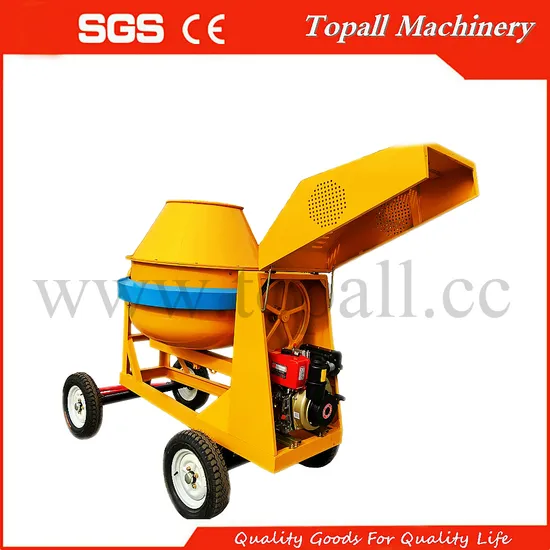

600L Diesel Concrete Mixer Introducing the 600L Diesel Concrete Mixer by Topall Machinery Co., Ltd.Features: Heavy model of tilting drum concrete mixer Hand feed Manual start Easily accessible engine cab Removable cover for good ventilation and engine cooling Optional four or two towing pneumatic wheels Specifications: Capacity: 1 bag of 50kg cement Experience the convenience and efficiency of the 580L Diesel Concrete Mixer. With its heavy-duty design, you can rely on this mixer for all your concrete mixing needs. The hand feed and manual start features make it easy to operate, while the easily accessible engine cab allows for convenient maintenance. The removable cover ensures good ventilation, keeping the engine cool even during long hours of use. Plus, with the optional towing pneumatic wheels, you can easily transport the mixer wherever it's needed.
Don't settle for anything less than the best. Choose the 580L Diesel Concrete Mixer by Jurong Topall Machinery Co., Ltd. for reliable performance and exceptional results.
| Model | TDCM175-6DA/B |
| Output per hour (m³) | 4.5 |
| Drum total volume (liters) | 580 |
| Unmixed capacity (liters) (bag cement) | 280 |
| 1 | |
| Mixed capacity (liters) | 175 |
| Drum ratation (rpm) | 21-25 |
| Engine | Diesel engine |
| Drum thickness (mm) | 4 |
| Weight (kg) | A-580/B-605 |
| Overall size (mm) | 3720L1160W1860H |
| 40'HQ container loading | 24 |
| Remark | Heavy model |
