Tractor Mounted Pto Driven Hay Rotary Tedder Rake

Product Description

Product Description
Rotary Tedder Rake. 3-point hitch mounted and PTO powered, this model gives you the flexible application, precision and maneuverability to harvest quality hay from tight places where every square foot of crop counts. The tedder/rake performs three functions-tedding, spreading and raking-and does not require any tools to switch among the three functions
Features
• Speeds drying to preserve hay quality
• Choose 3 functions with one attachment: ted, spread or windrow by shifting one lever
• 4 tine arms, 4 tines per arm
• Wide 86-inch raking width
• 3 point hitch mounted, PTO powered
• No tractor hydraulics required
• Precise, single pin height adjustment
• Easy to adjust windrow guard skirt for proper width for efficient baling
• No tools required to change functions
• Compact design allows harvesting in tight spot
Product Parameters
Our rotary rake can rake,ted and revert, use cam structure to invert the grass by one operation.The teeder side also can make the crop to stripe when bundling and storge, improve the working efficiency. All the rakes has special in multi-purpose, raking , teding and reverting; red the grass evenly and clearly, cut crop loss,improve the working effiency; easy operation,reliable performance,and good durable ability.

Model	RTR2500	RTR3500	RTR4000	RTR5000
Tedding width	2500	3500	4000	5000
Dimension	2100x2500x950mm	3100*3500*1000mm	4010x3539x1196mm	3250x4800x1000mm
Weight	160kg	260kg	350kg	500kg
Tines of per rotors	4	8	8	8
No of rotors	6	8	8	12
Working speed	4-8km/h	4-8km/h	4-8km/h	8-16km/h
Matched power	18-50hp	20-80hp	35-80hp	30-100hp
PTO RPM	540r/m	540r/m	540r/m	540r/m

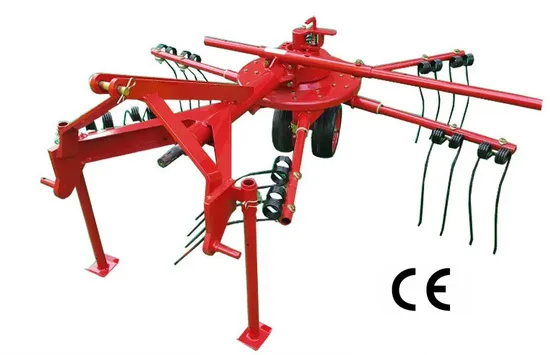

Detailed Photos
